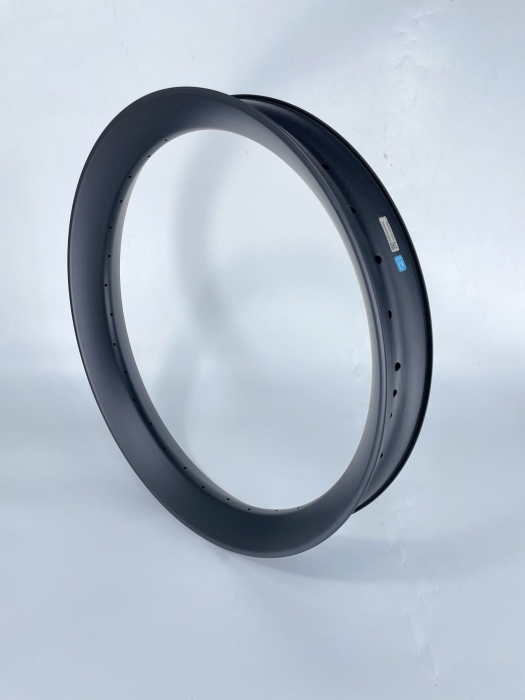

26" Fat Rim 90mm

• Size: 26"

• Axial Direction Angle: 9 degree

• BSD (Bead Seated Diameter): 559mm

• ERD (Effective Rim Diameter): 499mm

• External Width: 90mm

• Radial Direction Angle: 6.5 degree

• Rim Height: 40mm

• Weight: 650g / Premium 590g

• Valve Hole Diameter: 6.5mm (Presta)

• Spoke Holes Diameter: 4.5mm

• Spoke Holes Offset: +/-2.5mm

• Assembly Hole Diameter: 7.5mm

Recommendation

• Spoke Tension: 80~130kgf

• Tire Size: 4.0" ~ 5.2"

• Spoke Nipple Length: 14mm

• Tire Pressure: 5-20psi

• Load Limit (One Wheel): 200kg

Appearance

• Weave: UD / 3K / 12K

• Finish: Matte / Glossy

Design Features

• Extra wide options fit jumbo snow tires for extreme snow conditions while reducing rotating mass.

• Wide 90mm design is ideal for four-season trail riding with 4" to 5.5" wide tires.

• The 40mm deep section of the Wild Dragon rims provides extra rigidity for more aggressive riders.

• Providing a deep channel between the bead seats makes it easier to install and take off tires.

• A compact bead socket locks tires in tightly for easy tubeless installation.

• Aero-style rim profile (the triangle-like shape) sheds dirt and mud when conditions get rough. If you've ever packed wet snow between your spokes where it sticks to rim cutouts, you know how critical this feature can be.

Application

• Enduro / Snow / Sand / Dirt and more

Designer

• This superb fat rim was originally designed by Ryan Melnyck at lbs.Bikes, who is a former Canadian national champion in a mountain cross country racing and multi times provincal champion, also a mechanical designer, having done lots of design works for other brands.
