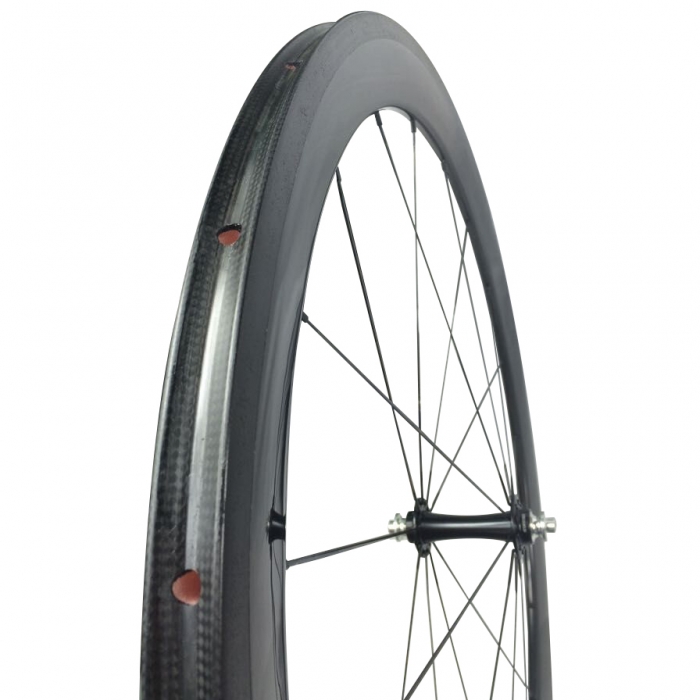

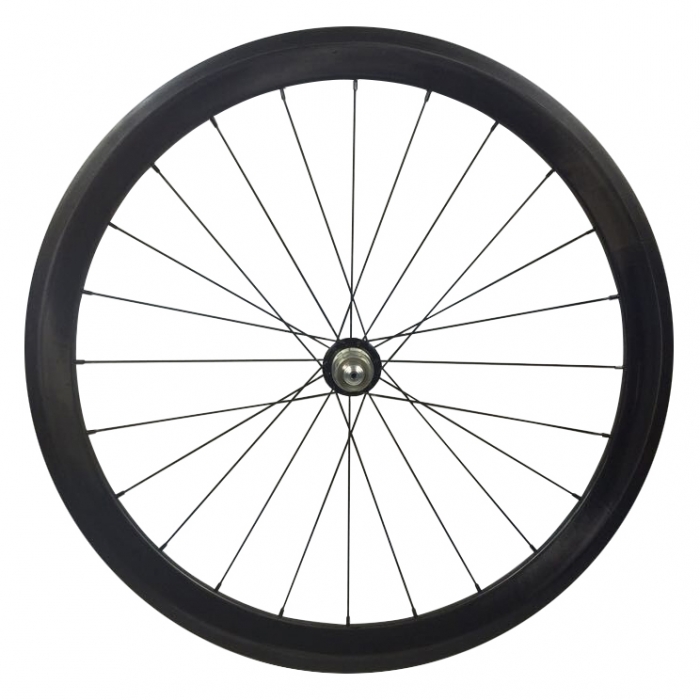

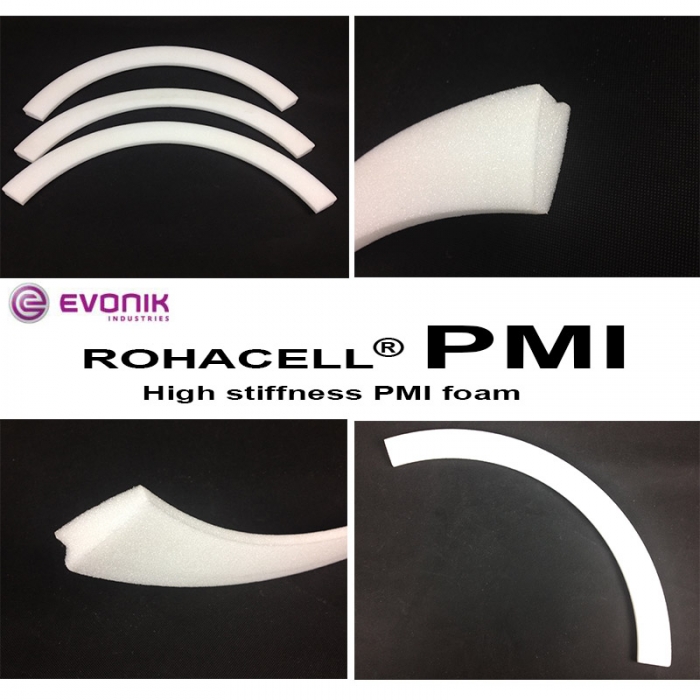

Tubular 46mm bike wheel with u-shaped 23mm width. The total weight is about 1080+/-20g. With 248g Hubsmith hub and 4.3g Pillar Aero spokes. 2 years warranty time. Solid structure with PMI foam.
overview
specs
customized
technology

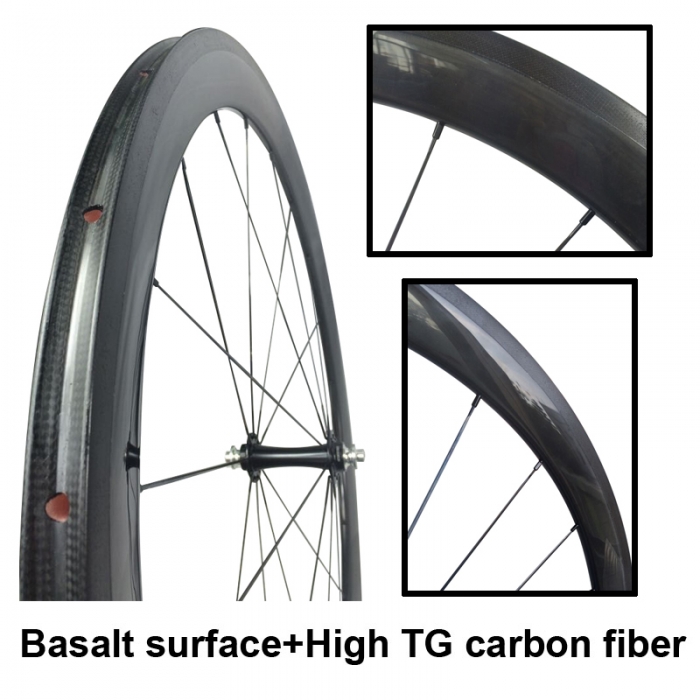

We utilizate Japanese Toray carbon fiber outer layer,high TG 1000, M40 and T700, the high temperature resistant performance is superior. You will not have any worries about crack.
We widen the rim width to U-shape 23mm. This is a great innovation for our superlight solid structure products. The demands of serious cyclists and their requirements for high performance carbon rims are key in our design. Weight, speed, stiffness are always mission in the cycling industry!
1080g for 1 pair tubular 46mm wheel !!!
Model |
HP46-320T |
Use |
Road bike |
Material |
Full carbon & high TG |
Size |
700c/28” |
Version |
Tubular |
Finish |
UD 3K matte/glossy |
Surface |

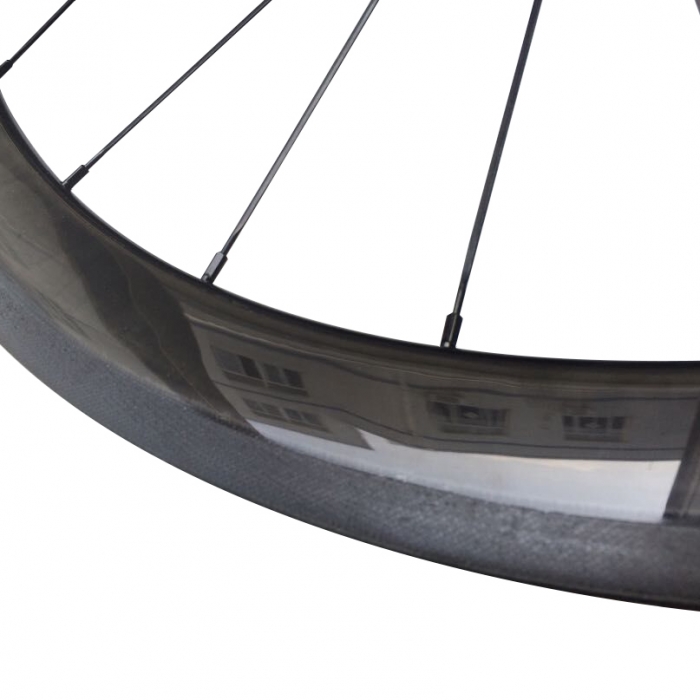

Basalt braking surface |
Depth |
46mm |
Width |
23mm |
ERD |
547mm |
Rim Weight |
320g±10g |
Wheelset Weight |
1080g±20g |
Hub |
248g Hubsmith BF-R001F/R001R 20/24H |
Spoke |
4.3g Pillar Aero 1420 |
Nipples |
Pillar alloy |
Units |
PC |
Warranty |
24 months |
Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.
Road Hubs: | Spokes: |
177g ExtraLite | 4.3g Sapim CX-Ray |
314g DT SWISS 240S | 4.3g Pillar Aero 1420 |
248g Hubsmith BF-R001F/R001R | 6.7g Pillar Aero 1423 |
257g Bitex RAF10 / RAR9 | 6.7g Pillar Aero 1432 |
297g Powerway R36 | 6.7g Japan Blade spokes |
280g Powerway R13 | |
285g Novatec 291SB & 482SB | |
Road disc brake hubs: | |
408g Novatec D711SB & 722SB | |
355g hubsmith HS-R034F&HS-R-034R straight pull hub |
When we were in the cycling road race,highlighting the tactical of a great groups is very important!
This is related to race ranking.This requires not only that we have a strong explosive,but also bike's acceleration is very important.
Bike accleration is inseparable with the wheelset performance,when the same rider rides different wheelsets,results tend to be different. X-Bike rims and wheels are designed for climber,not only have the most light weight and inertia their performance is also the most prominent.They are the weapons making your opponents far behind of you!
