Home Carbon Wheels Light Weight Carbon Wheels HP46-320T HP46-310 EX-CX Superlight Carbon Wheels
carbon wheels

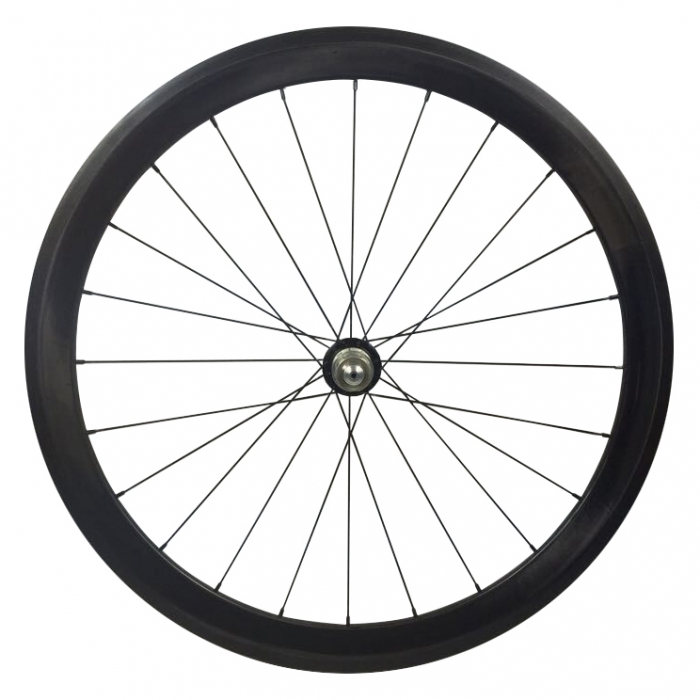

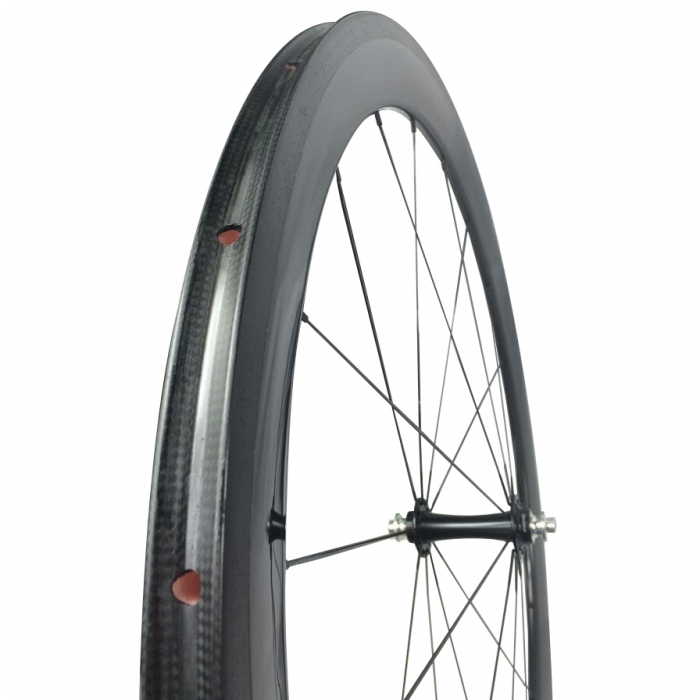

HP46-310 EX-CX Superlight Carbon Wheels

Build up carbon wheels with Bitex hub and Sapim CX-Ray spokes.

Tubular 46mm depth u-shaped 23mm width.

The total wight is about 1090+/-20g.

Solid structure with PMI foam, which is same as big brand, Mavic, Corima.

Contact Us
  • overview

  • specs

  • customized

  • technology

- Utilization of Japanese Toray carbon fiber outer layer,high TG 1000,M40 and T700.

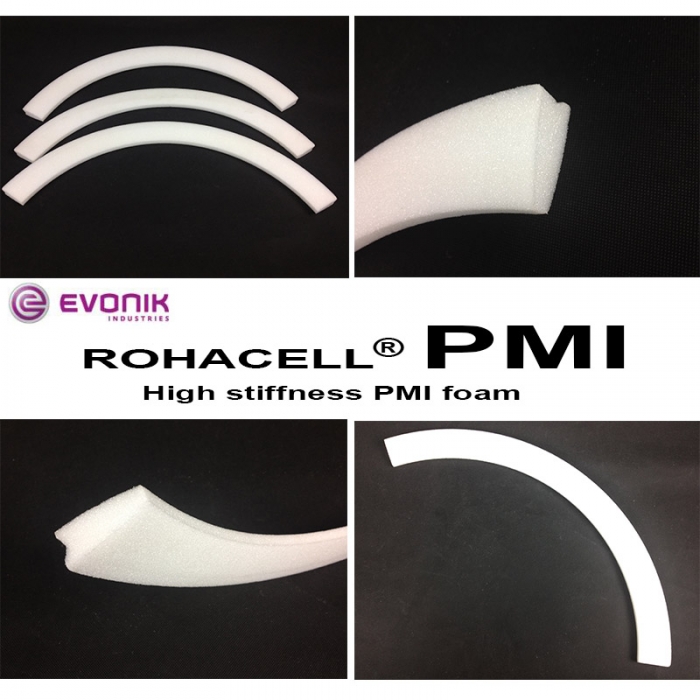

- Solid structure with PMI foam.

- U-shape 23mm width strong and stiff.

- F495gr / R589gr, which is super competitive for wide tubular wheel with strong capacity of acceleration.

- 46MM SUPERLIGHT TUBULAR CARBON WHEELS Include – Free titanium Skewer, Brake Pads, Spare spokes, Valve extender.

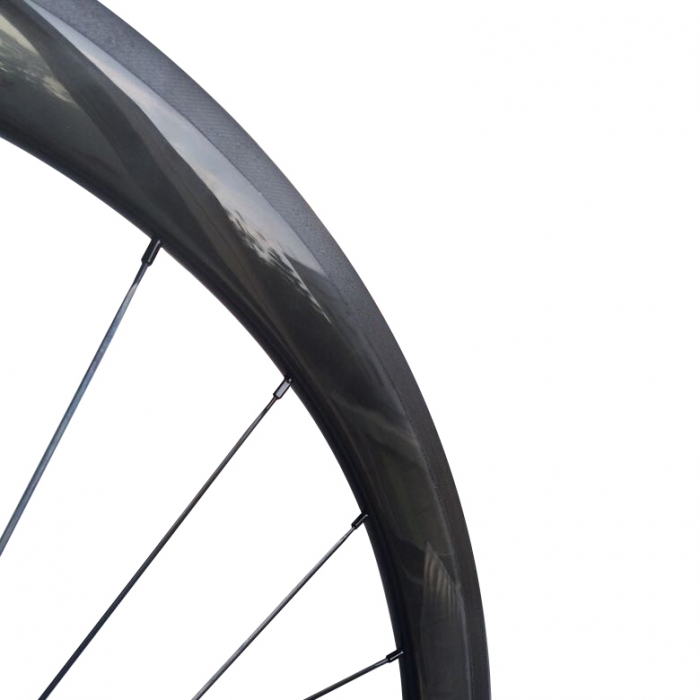

- Basalt braking surface which could endure 240 degrees when riders braking.

- 24 months warrant time. Good pre-sale and after-sale service.

- Decal and painting service for OEM your brands.

inquiry now

Subject : HP46-310 EX-CX Superlight Carbon Wheels

Model

HP46-320T

Use

Road bike

Material

Full carbon & high TG

Size

700c/28

Version

Tubular

Finish

UD 3K matte/glossy

Surface

Basalt braking surface

Depth

46mm

Width

23mm

ERD

547mm

Rim Weight

320g±10g

Wheelset Weight

1090g±20g

Hub

257g Bitex RAF10/RAR9

Spoke

4.3g Sapim CX-Ray  20/24H

Nipples

Pillar alloy

Units

PC

Warranty

24 months


Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.


 Road Hubs:  Spokes:
 177g ExtraLite     4.3g Sapim CX-Ray
 314g DT SWISS 240S  4.3g Pillar Aero 1420
 248g Hubsmith BF-R001F/R001R  6.7g Pillar Aero 1423
 257g Bitex RAF10 / RAR9  6.7g Pillar Aero 1432
 297g Powerway R36  6.7g Japan Blade spokes
 280g Powerway R13
285g Novatec 291SB & 482SB
 Road disc brake hubs:
 408g Novatec D711SB & 722SB
 355g hubsmith HS-R034F&HS-R-034R straight pull hub

When we were in the cycling road race,highlighting the tactical of a great groups is very important!

This is related to race ranking.This requires not only that we have a strong explosive,but also bike's acceleration is very important.

Bike accleration is inseparable with the wheelset performance,when the same rider rides different wheelsets,results tend to be different. X-Bike rims and wheels are designed for climber,not only have the most light weight and inertia their performance is also the most prominent.They are the weapons making your opponents far behind of you!

X-Bike equipment Co.,Ltd,a brand of carbon wheel manufacture, China.

X-Bike Equipment Co., Ltd, is a carbon bicycle manufacturer established by 2007.To meet the needs of our consumers for outstanding quality carbon bicycles, superlight carbon rims, wheels. We get out into the market and race, listen, observe and learn, so that we are able to look ahead and understand the trends which will shape our business in the future, and move swiftly to prepare for what’s to come.
