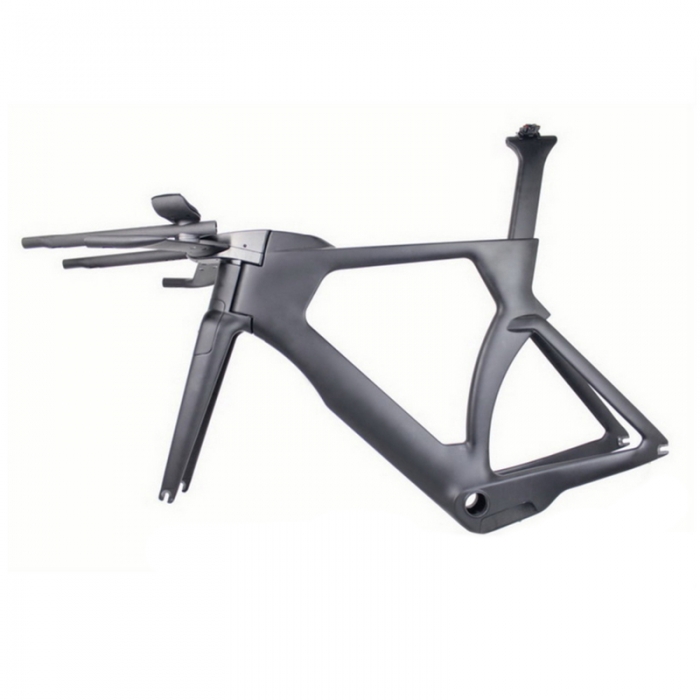

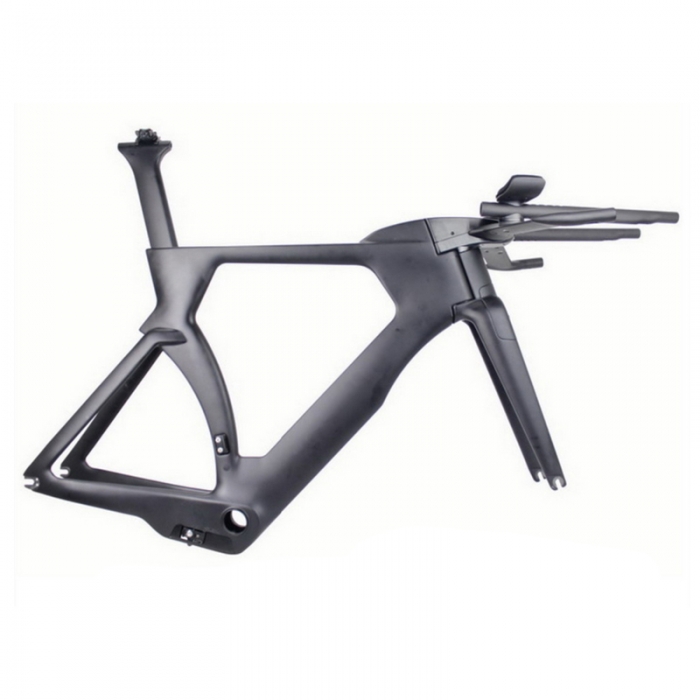

Carbon TT Frame model XB-TT012. 48/51/54/57cm size. 2805±40g for 1 set frameset(including frame, fork, seatpost, stem). 1-1/8" head tube. BB86 bottom bracket. Internal cable routing cable.
overview
specs
customized
technology
X-BIKE products are race tested and put through the strictest quality control processes. All items have passed SGS, EN test.
Frame is the heart for carbon bicycle. Stiffer and faster, it is designed for racing amd handcrafted in OEM factory. Order a frame only - or let us build it up depending on your specs as Unparalleled bike in the world!
Subject : AERO Time Trial Bicycle Frame
Brand |
X-Bike |
Item |
XB-TT012 Frame/Fork/Seatpost/Headset/Handlebar/ Stem |
Frame Size |
S/48cm,M/51cm,L/54cm,XL/57cm |
Stem Size |
100mm |
Bar size |
420mm |
Seat Post |
350mm (74-78° seat angle) |
Weave |
Carbon Aero UD Monocoque |
Finished |
To order |
Type |
Triathlon bikes,Time trial carbon bicycle |
Material |
Hight Modulus Toray T700 Carbon Fiber |
Brake Type |
TT12 |
Weight |
Frame 1750g(54cm),Fork 425g,Seatpost 210g, Stem 420g. |
Groupset |
SRAM FORCE Carbon Crank 172.5mm |
Bottom bracket |
BB86 Dia=46mm |
quick release |
Front 9*100mm QR Rear 9*130mm QR |
Head tube |
1-1/8” |
Wheels size |
700X25C |
Warranty |
2 years |
Tested |
SGS |
Laden Weight |
115KG |
Customized frames per your specs depending on your base. Mould design is our greatest superiority.
TT frame, Track frame, Road frame, MTB (Hard Tail,XC , AM ,DH) frame, Fatbike frame and other bicycle parts (fork, handlebar, stem, saddle, seat post, bottle cage...) to your options.
Water-transfer decal, sticker and painting service for OEM your brands. You could tell us your unique design of decal, for example letters, outline, color, size and so on. Then our designer will make the impression drawing for you.
