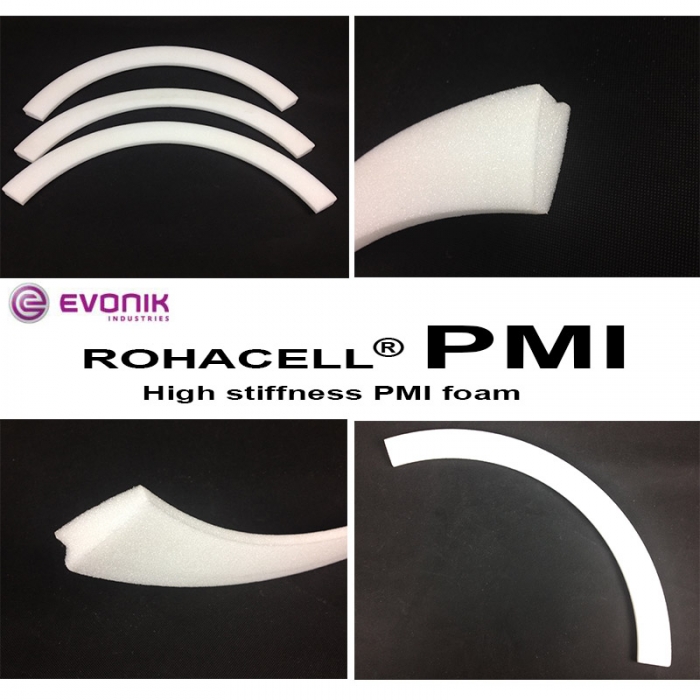

265g solid tubular 30mm rim with PMI foam filled.
257g
Bitex RAF10/RAR9 hub.
4.7g
Sapim CX-Ray spokes with nipples.
Total
993.8g carbon wheels
overview
specs
customized
technology

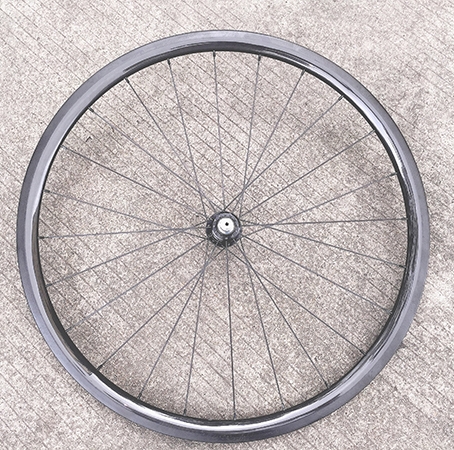

- Total 993.8g for
tubular 30mm carbon wheels.
- Ultralight rims and
wheels, which is very suitable for climbing and downhill.
- Hard rim sidewalls will
effectively apply 100% of the force to the tires, which combined with the
lightweight advantage of HP series carbon rims,results in excellent
acceleration.
- Utilization of Japanese
Toray carbon fiber outer layer, high TG 1000,M40 and T700 that you don't have
any worry about crack.
Subject : 990g 30mm Carbon Wheels
Model |
HP30-260T |
Use |
Road bike |
Material |
Full carbon & high TG |
Size |
700c/28” |
Version |
Tubular |
Finish |
UD matte/glossy |
Surface |
Basalt braking surface |

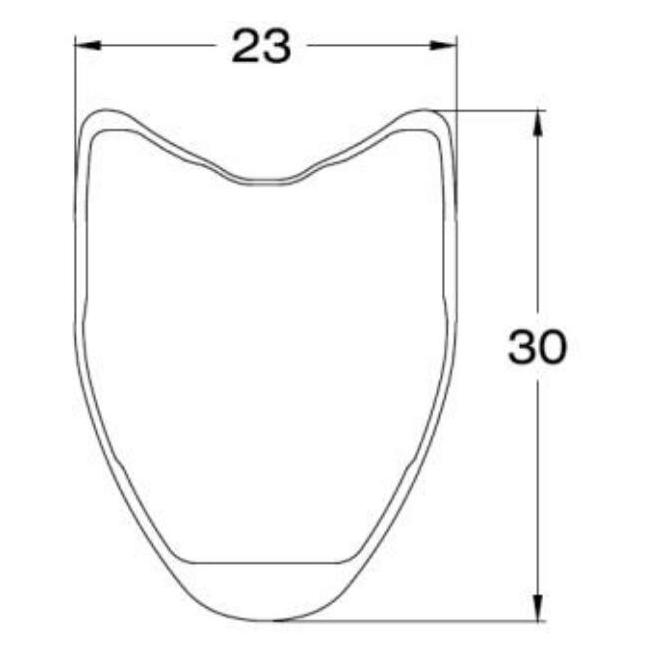

Depth |
30mm |
Width |
23mm |
ERD |
580mm |
Rim Weight |
260g±10g |
Wheelset Weight |
990g±20g |
Hub |
257g Bitex RAF10/RAR9 |
Spoke |
4.3g Sapim CX-Ray 20/24H |
Nipples |
Pillar alloy |
Units |
PC |
Warranty |
24 months |
Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.
Road Hubs: | Spokes: |
177g ExtraLite | 4.3g Sapim CX-Ray |
314g DT SWISS 240S | 4.3g Pillar Aero 1420 |
248g Hubsmith BF-R001F/R001R | 6.7g Pillar Aero 1423 |
257g Bitex RAF10 / RAR9 | 6.7g Pillar Aero 1432 |
297g Powerway R36 | 6.7g Japan Blade spokes |
280g Powerway R13 | |
285g Novatec 291SB & 482SB | |
Road disc brake hubs: | |
408g Novatec D711SB & 722SB | |
355g hubsmith HS-R034F&HS-R-034R straight pull hub |
Contactless spokes cap base
The
spokes cap in the inner rims will take up to 140kgf of spokes tension. This is
related to the rim strength directly.
The
spokes capbase in normal carbon fiber rims are reinforced by carbon fibers with
no more than two meters. Each carbon fiber will overlap over 25mm to maintain
its strength. For HP series rims, we not only need to meet the requirements of
each carbon fiber’s strength, but also achieve the light weight feature. The
spokes cap base of HP series rims is reinforced by up to 25m of t1000 carbon
fiber, it is combined with multi-angle carbon fiber,thusthere will not be any
seams. This also avoids weak bonding strength and eliminates the need to add
more carbon fiber to strengthen it. Compared to normal carbon fiber rims, HP
series rims weigh 20% less without sacrificing strength.
