Home Carbon Wheels Light Weight Carbon Wheels HP30-260T X-BIKE super light high stiffness carbon wheels
Carbon Wheels

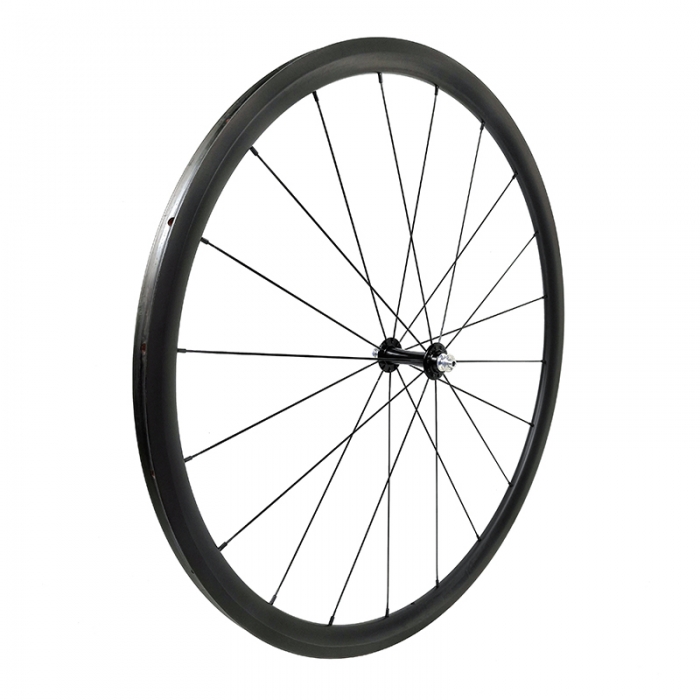

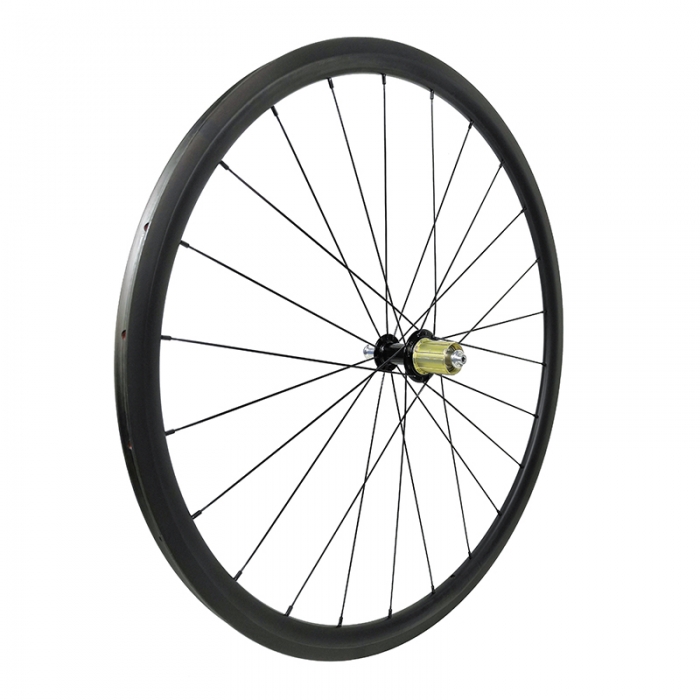

X-BIKE super light high stiffness carbon wheels

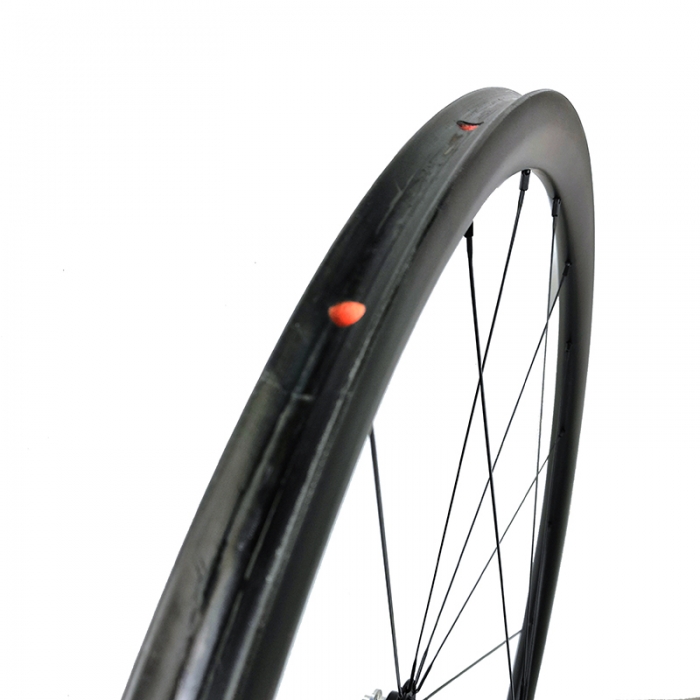

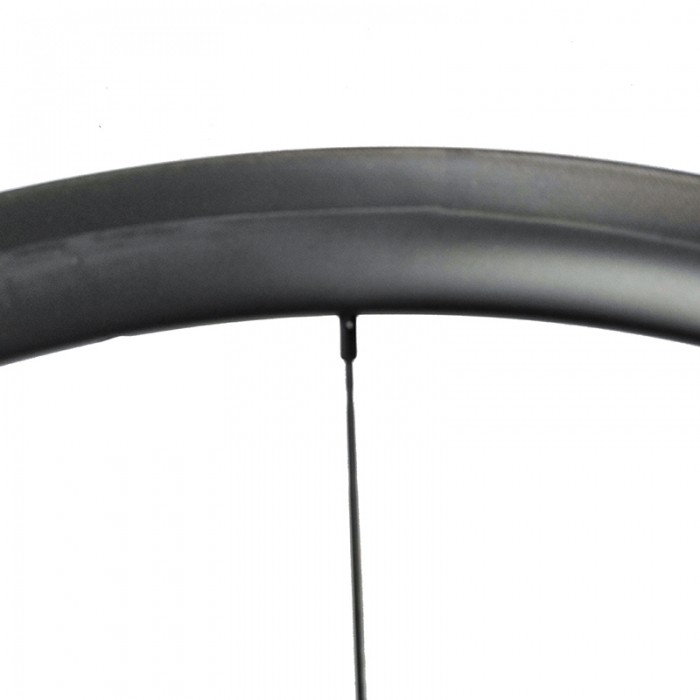

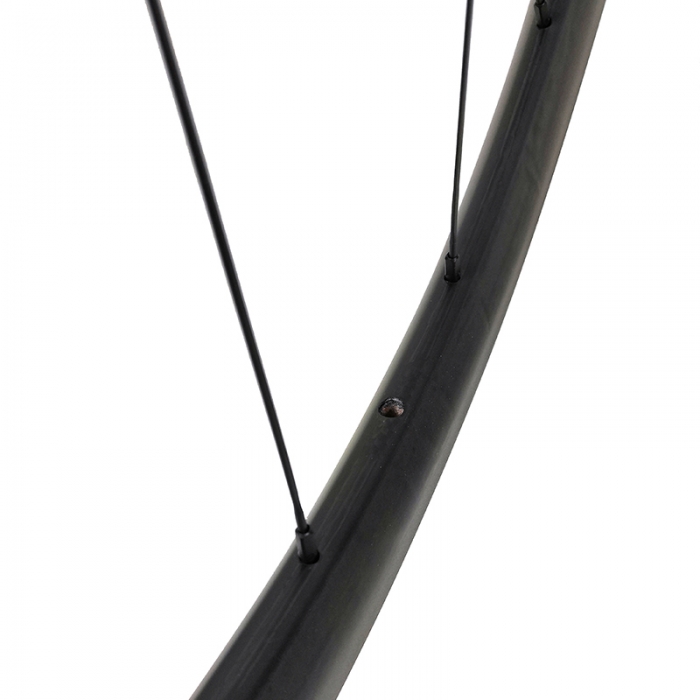

X-Bike 260g solid tubular 30mm rim with PMI foam filled.

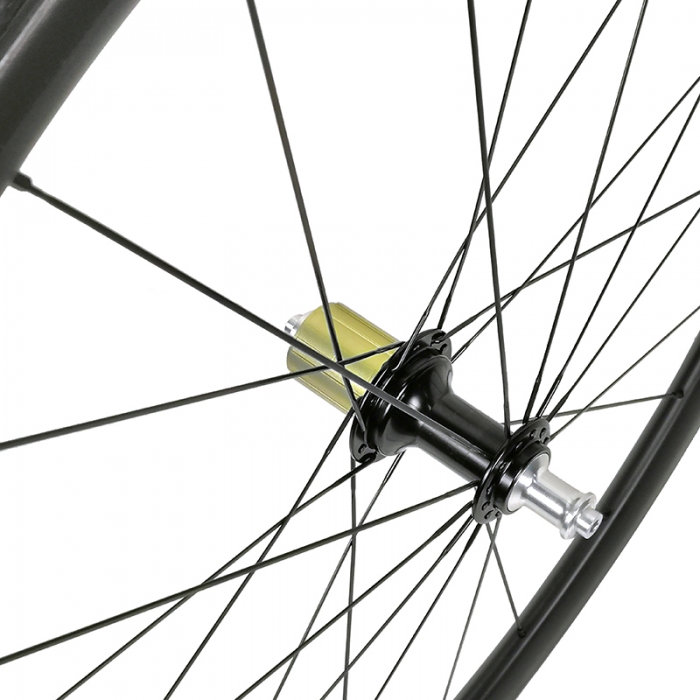

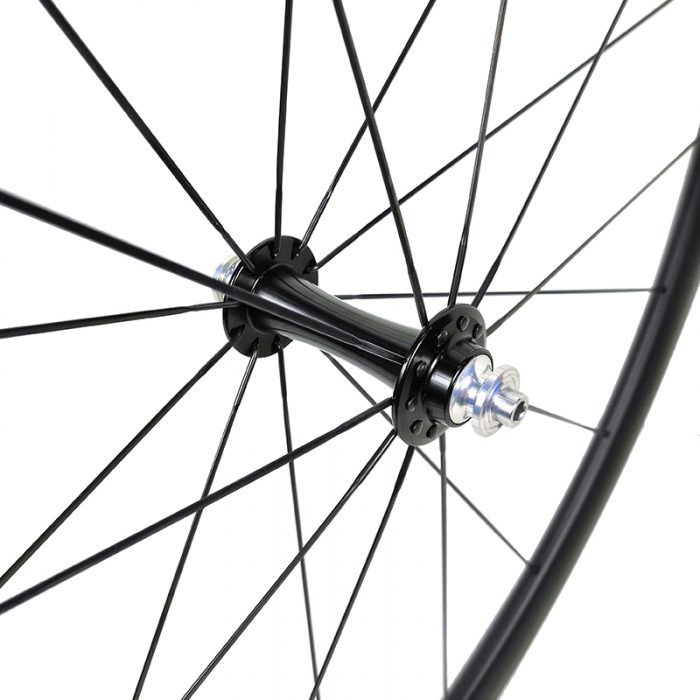

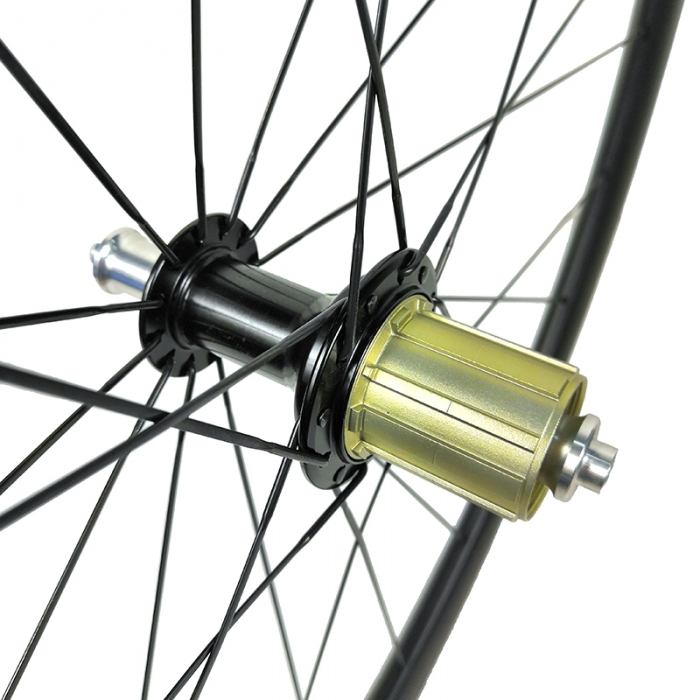

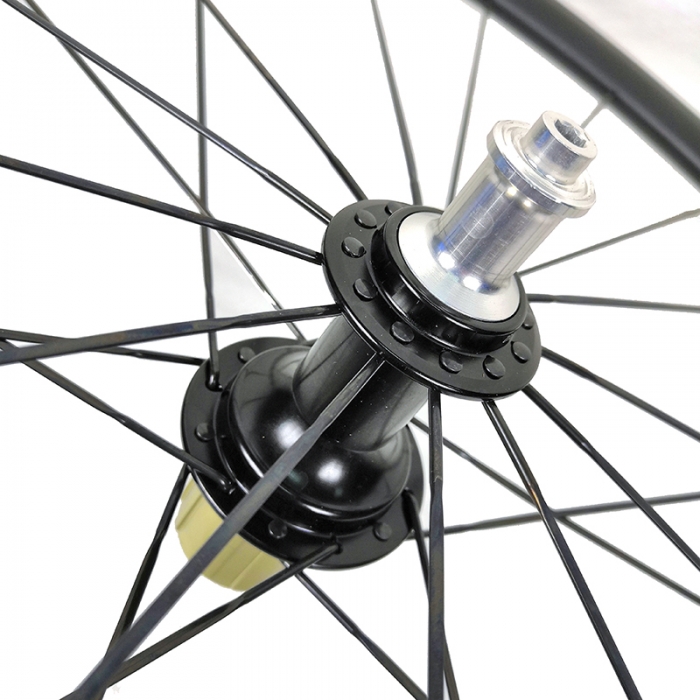

Basalt braking surface, Hubsmith BF-R001 hubs, 20H/24H Sapim CX-Ray spokes, external alloy Pillar nipples. Total 990+/-20g carbon wheels. 24 months warranty time after arrival.

Contact Us
  • overview

  • specs

  • customized

  • technology

- Total 990+/-20g for tubular 30mm carbon wheels.


- Ultralight rims and wheels, which is very suitable for climbing and downhill.


- Hard rim sidewalls will effectively apply 100% of the force to the tires, which combined with the lightweight advantage of HP series carbon rims, results in excellent acceleration.


- Utilization of Japanese Toray carbon fiber outer layer, high TG 1000,M40 and T700 that you don't have any worry about crack.



inquiry now

Subject : X-BIKE super light high stiffness carbon wheels

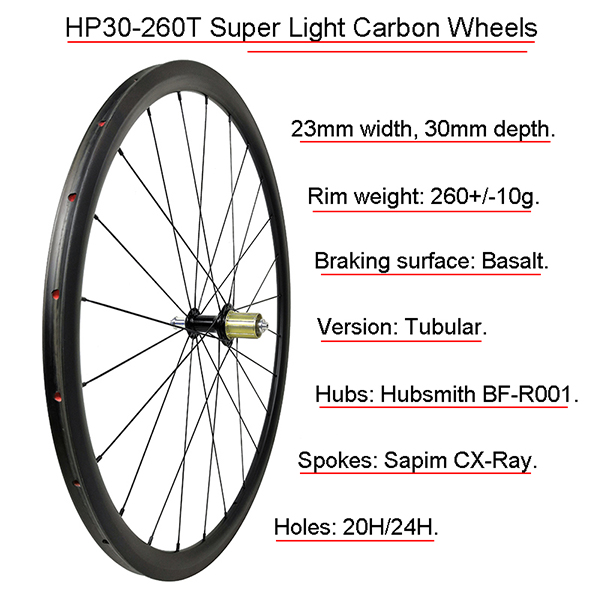

Model

HP30-260T

Use

Road bike

Material

Full carbon & high TG

Size

700c/28

Version

Tubular

Finish

UD matte

Surface

Basalt braking surface

Depth

30mm

Width

23mm

ERD

580mm

Rim Weight

260g±10g

Wheelset Weight

990g±20g

Hub

Hubsmith BF-R001

Spoke

4.3g Sapim CX-Ray  20H/24H

Nipples

Pillar alloy

Units

PC

Warranty

24 months


Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.


 Road Hubs:  Spokes:
 177g ExtraLite     4.3g Sapim CX-Ray
 314g DT SWISS 240S  4.3g Pillar Aero 1420
 248g Hubsmith BF-R001F/R001R  6.7g Pillar Aero 1423
 257g Bitex RAF10 / RAR9  6.7g Pillar Aero 1432
 297g Powerway R36  6.7g Japan Blade spokes
 280g Powerway R13
285g Novatec 291SB & 482SB
 Road disc brake hubs:
 408g Novatec D711SB & 722SB
 355g hubsmith HS-R034F&HS-R-034R straight pull hub

Contactless spokes cap base

The spokes cap in the inner rims will take up to 140kgf of spokes tension. This is related to the rim strength directly.
The spokes capbase in normal carbon fiber rims are reinforced by carbon fibers with no more than two meters. Each carbon fiber will overlap over 25mm to maintain its strength. For HP series rims, we not only need to meet the requirements of each carbon fiber’s strength, but also achieve the light weight feature. The spokes cap base of HP series rims is reinforced by up to 25m of t1000 carbon fiber, it is combined with multi-angle carbon fiber,thusthere will not be any seams. This also avoids weak bonding strength and eliminates the need to add more carbon fiber to strengthen it. Compared to normal carbon fiber rims, HP series rims weigh 20% less without sacrificing strength.
