Home Carbon rims Light Weight Carbon Rims HP46-320T Hand-assembled carbon bicycle rims
carbon bicycle rims

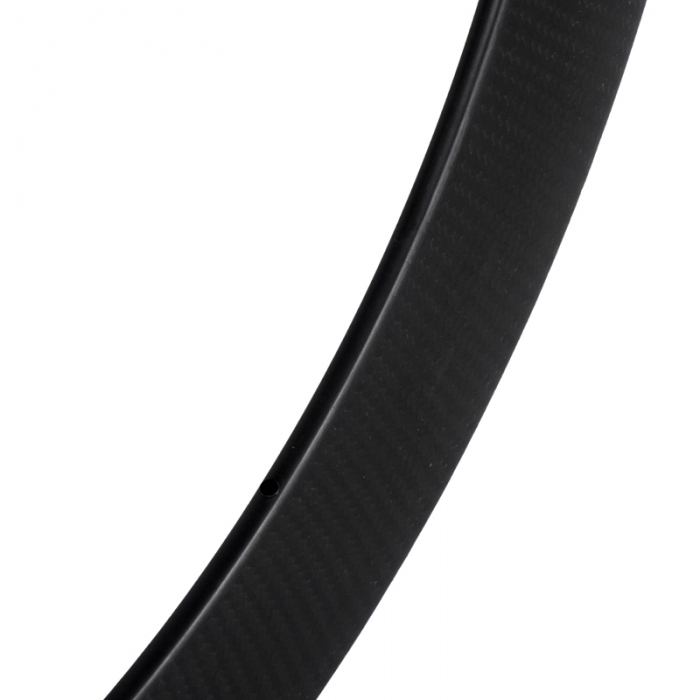

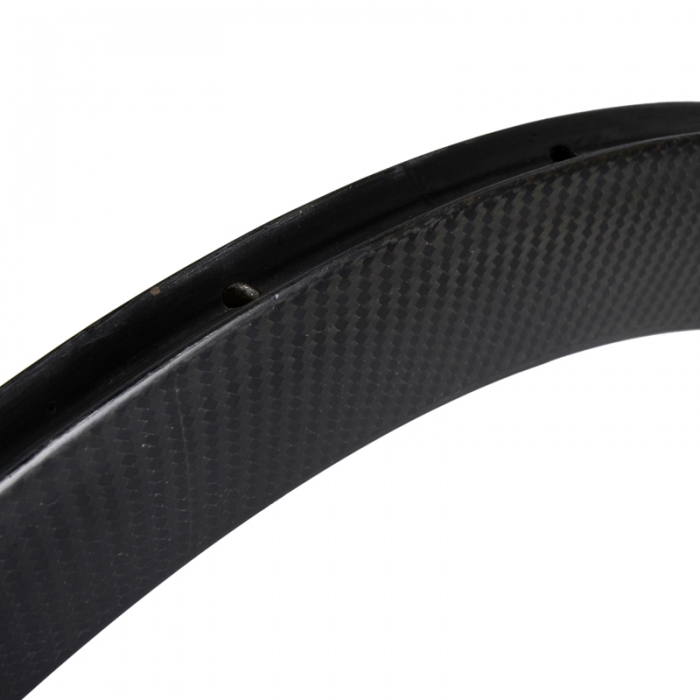

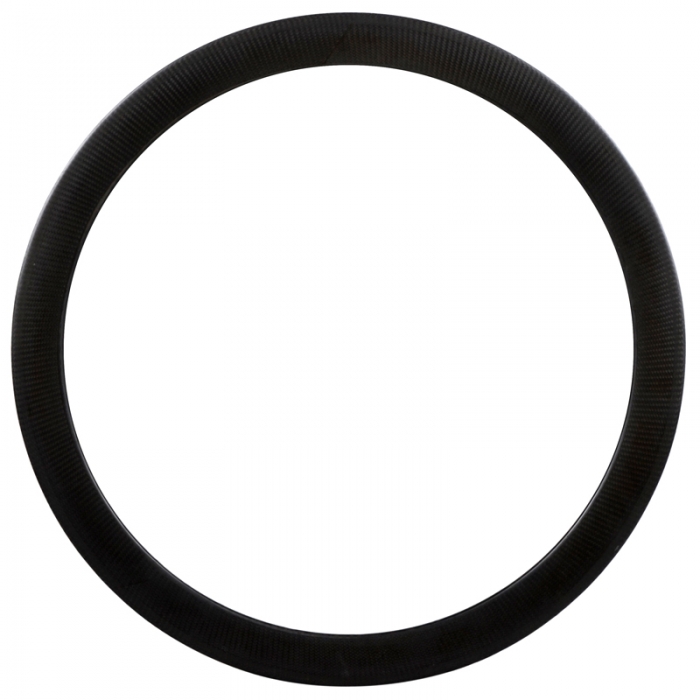

Hand-assembled carbon bicycle rims

The lightest 320g tubular 46mm carbon bicycle rims is made by solid PMI foam and from Germany. Solid and foam with core structure make the rim have perfect inertia and high siffness. It can make you exceed others.

Contact Us
  • overview

  • specs

  • customized

  • technology

When we were in the cycling road race,highlighting the tactical of a great groups is very important!

This is related to race ranking.This requires not only that we have a strong explosive,but also bike's acceleration is very important.


Bike accleration is inseparable with the wheelset performance,when the same rider rides different wheelsets,results tend to be different. X-Bike rims and wheels are designed for climber,not only have the most light weight and inertia their performance is also the most prominent.They are the weapons making your opponents far behind of you!

inquiry now

Subject : Hand-assembled carbon bicycle rims

Model

HP46-320T-DB

Use

Disc brake

Material

Full carbon & high TG

Size

700c/28

Version

Tubular

Finish

UD 3K matte/glossy

Surface

Basalt braking surface

Depth

46mm

Width

23mm

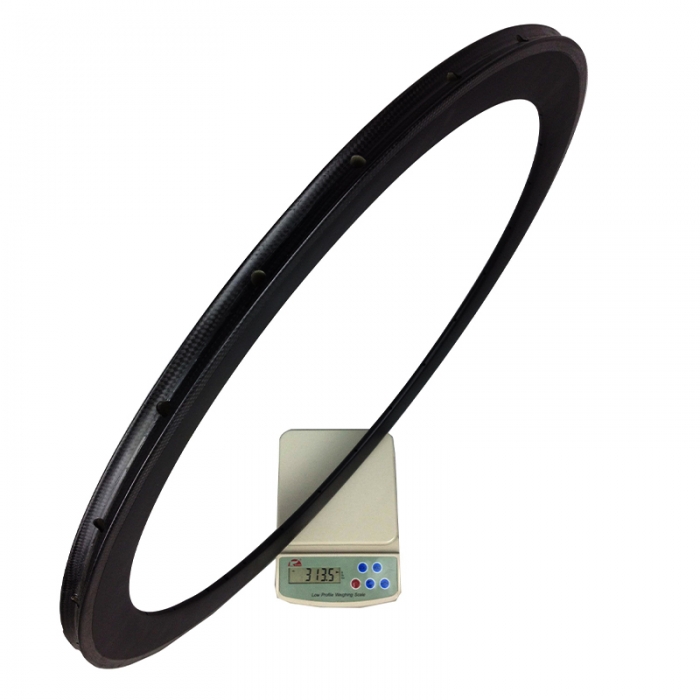

Rim Weight

320±10g

ERD

547mm

Nipples

IN & EX

Units

PC

Warranty

24 months


Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.


 Road Hubs:  Spokes:
 177g ExtraLite     4.3g Sapim CX-Ray
 314g DT SWISS 240S  4.3g Pillar Aero 1420
 248g Hubsmith BF-R001F/R001R  6.7g Pillar Aero 1423
 257g Bitex RAF10 / RAR9  6.7g Pillar Aero 1432
 297g Powerway R36  6.7g Japan Blade spokes
 280g Powerway R13
285g Novatec 291SB & 482SB
 Road disc brake hubs:
 408g Novatec D711SB & 722SB
 355g hubsmith HS-R034F&HS-R-034R straight pull hub

More suitable for installation without wire beads


Most wire beadedtires are used for training wheelsets. For high-end competition wheels, it is best to not use wire beaded tires to achieve the lightweight feature.

Although this two types of tires are both 700c/28" size, it is more difficult to mount the tires without wire due to its characteristics. We have considered this situation when we were designing HP series rims.


The adaptive design of tires bed makes it easier to assemble without steel beads.The combination of both tire and tire bed will be reliable and it will not cause the tires of falling out.
