Home Carbon rims Light Weight Carbon Rims HP225 Accelerating fast lightest road bike carbon rims
lightweight carbon rims

Accelerating fast lightest road bike carbon rims

HP225 is 2016 HP series Superlight lightest bicycle carbon rims220g+/-10g The rim could assemble the lightest wheelset in the world. U-shape 23mm width. Low 22mm profile. Tubular version that is more suitable for installation without wire beads. Solid with PMI foam that make better acceleration.

Contact Us
  • overview

  • specs

  • customized

  • technology

- Utilization of Japanese Toray carbon fiber outer layer,high TG 1000,M40 and T700.

- Solid structure with PMI foam.

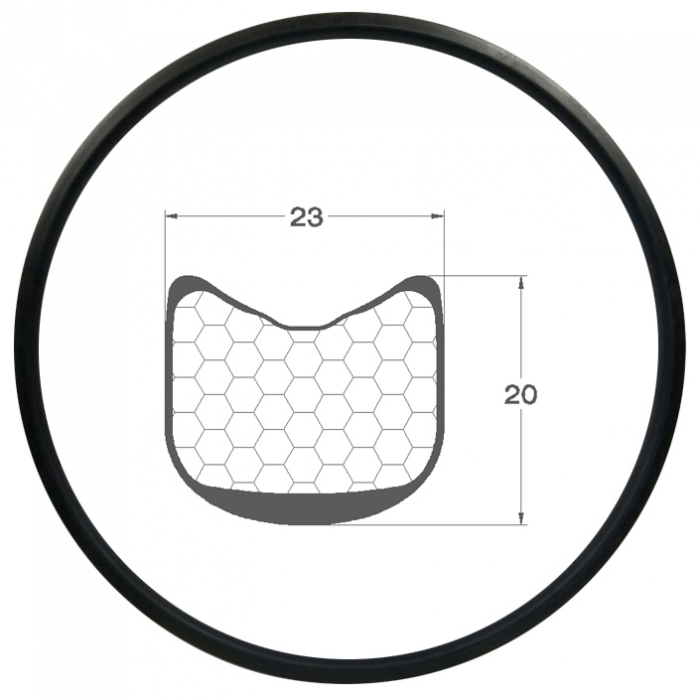

- U-shape 23mm width strong and stiff.

- 260g/pc, which is super competitive for wide tubular wheel with strong capacity of acceleration.

- 30MM SUPERLIGHT TUBULAR CARBON RIM


- Basalt braking surface which could endure 279°C when riders braking.

- 24 months warrant time. Good pre-sale and after-sale service.

- Decal and painting service for OEM your brands.

inquiry now

Subject : Accelerating fast lightest road bike carbon rims

Model

HP225

Structure

Solid with PMI foam

Material

Full carbon & high TG

Size

700c/28

Version

Tubular

Finish

UD matte/glossy

Surface

Basalt braking surface

Depth

22mm

Width

23mm

ERD

595mm

Rim Weight

220g±10g

Spoke Hole

18~32H

Nipples

IN

Units

PC

Warranty

24 months


Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.


 Road Hubs:  Spokes:
 177g ExtraLite     4.3g Sapim CX-Ray
 314g DT SWISS 240S  4.3g Pillar Aero 1420
 248g Hubsmith BF-R001F/R001R  6.7g Pillar Aero 1423
 257g Bitex RAF10 / RAR9  6.7g Pillar Aero 1432
 297g Powerway R36  6.7g Japan Blade spokes
 280g Powerway R13
285g Novatec 291SB & 482SB
 Road disc brake hubs:
 408g Novatec D711SB & 722SB
 355g hubsmith HS-R034F&HS-R-034R straight pull hub

Carbon fiber vacuum assisted laminating technology


We produce our HP series carbon rims using strict aerospace manufacturing processes and technologies. If there are excessive voids in the inner carbon fiber products, the fatigue resistance will be reduced.


This is also a very important requirement in the aerospace industry. In order to make a perfectbond between the carbon fiber layers, we perform 3 separate vacuumcure steps in the production of each rim. This makes a multi-layer fiber rim that is compact and free of voids.


Bike accleration is inseparable with the wheelset performance, when the same rider rides different wheelsets,results tend to be different. X-Bike rims and wheels are designed for climber,not only have the most light weight and inertia their performance is also the most prominent. They are the weapons making your opponents far behind of you!
