X-BIKE products are race tested and put through the strictest quality control processes. All items have passed SGS, EN test.
Frame is the heart for carbon bicycle. Stiffer and faster, it is designed for racing amd handcrafted in OEM factory. Order a frame only - or let us build it up depending on your specs as Unparalleled bike in the world !

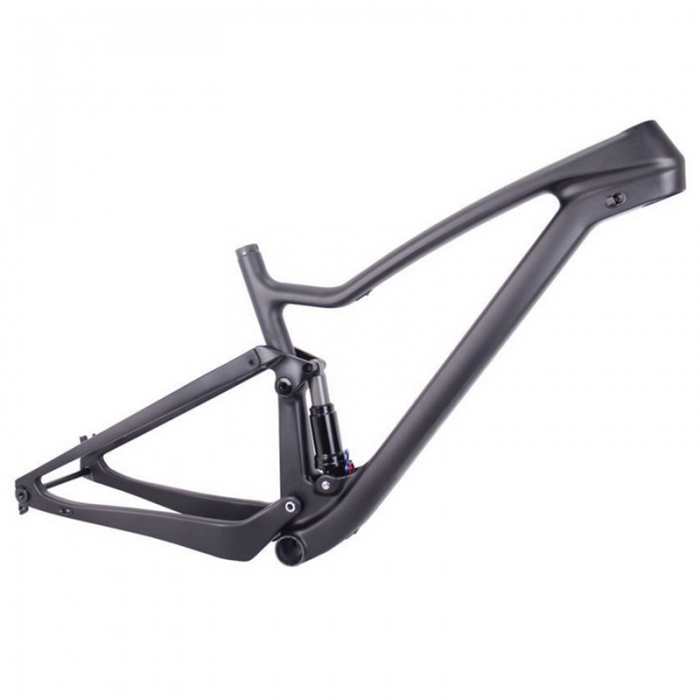

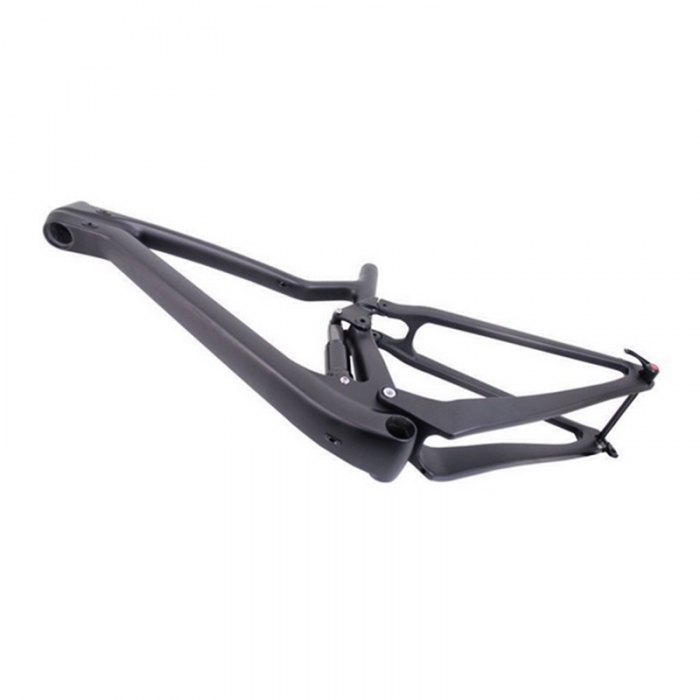

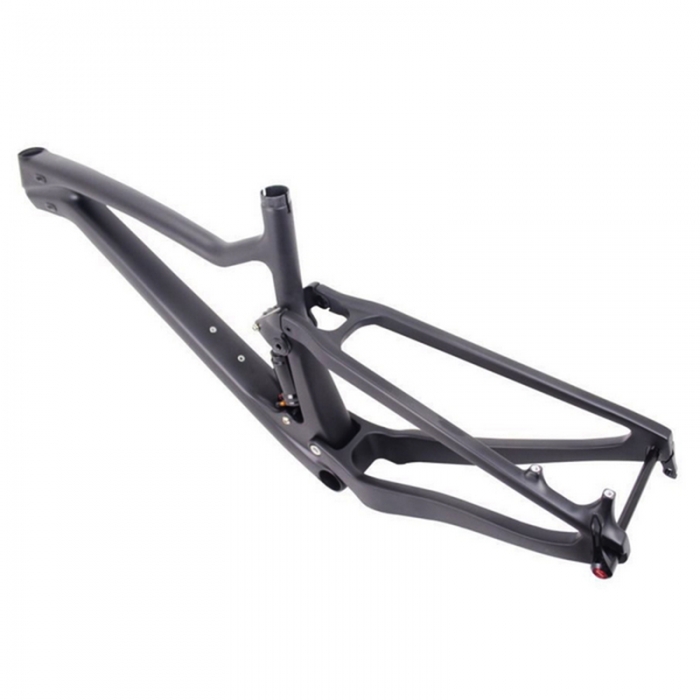

Subject : 27.5er Full Suspension MTB Frame
Item: |
XB-FS027 650B plus |

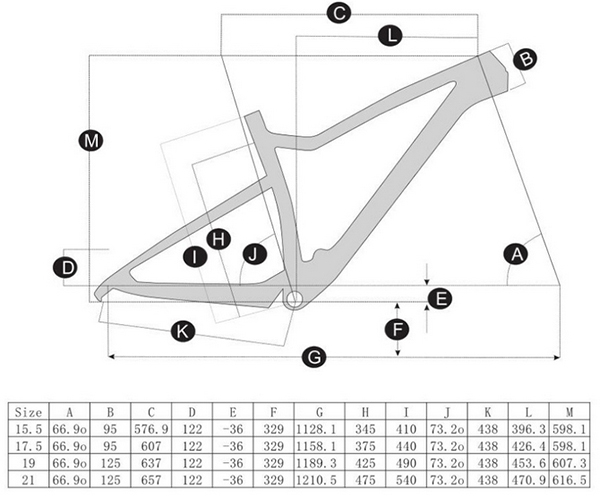

Size: |
15.5”,17.5” ,19”,21” |
Finished |
UD Matt or Gloss |
Type: |
27.5er Plus carbon frame |
Material: |
High Modulus Toray T700 Carbon Fiber |

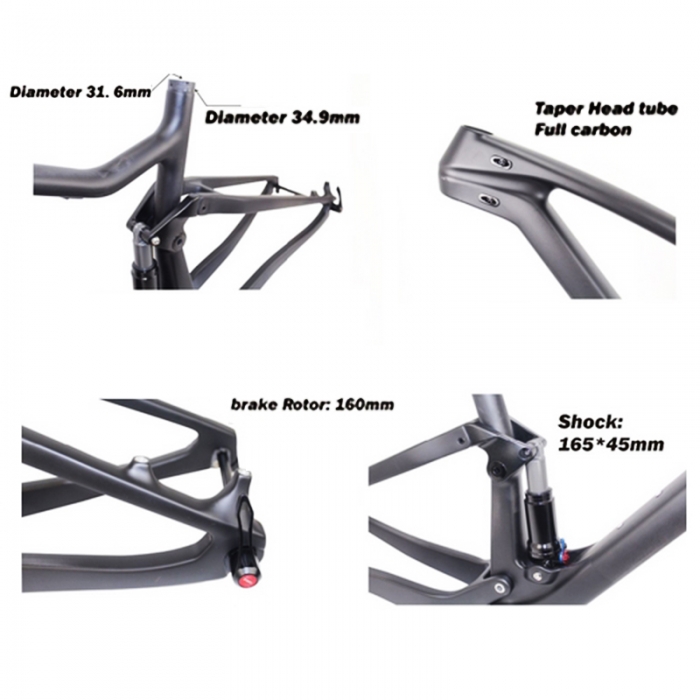

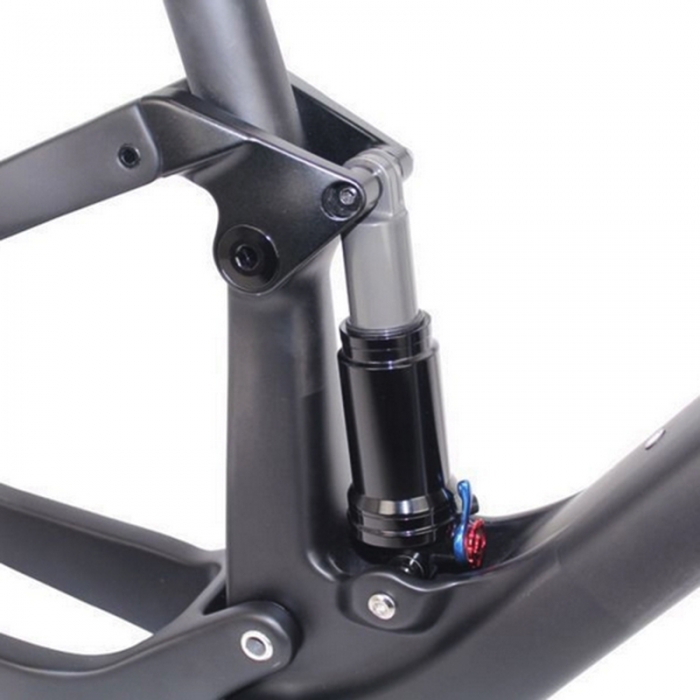

Rear Shock: |
165*45mm |
Rear wheels travel: |
122mm |
Advise Fork Travel: |
130mm |
Brake Type |
Disc-brakes |
Disc Rotor size: |
160mm |
Warranty: |
2 years |
Weight: |
2100g/+-45g (17.5”) |
Bottom bracket type: |
BB92 |
Cable type: |
Internal cable |
Rear space : |
12*148mm thru axle |
Head tube: |
1-1/8”,1-1/2” Taper full carbon |
Seat tube: |
For 31.6mm diameter seat post |
Max Tire size: |
27.5er*2.8 inch |
Customized frames per your specs depending on your base. Mould design is our greatest superiority.
TT frame, Track frame, Road frame, MTB (Hard Tail,XC , AM ,DH) frame, Fatbike frame and other bicycle parts (fork, handlebar, stem, saddle, seat post, bottle cage...) to your options.
Water-transfer decal, sticker and painting service for OEM your brands. You could tell us your unique design of decal, for example letters, outline, color, size and so on. Then our designer will make the impression drawing for you.
