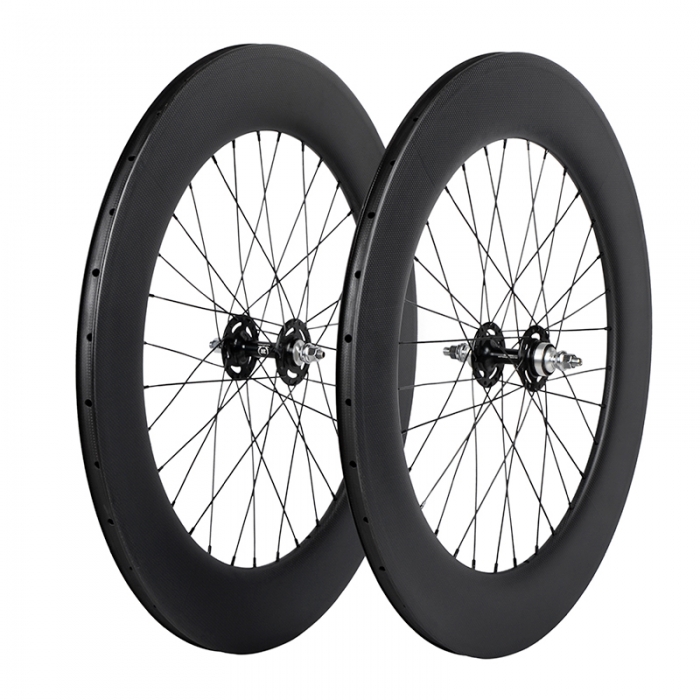

Conventional U-shape 23mm width 88mm depth carbon wheel. Basalt braking surface make the brake system become more precision. Special geographic location is diverse and we wanted to make a wheelset that provides aero performance and stability over all types of terrains and through all weather conditions.
overview
specs
customized
technology

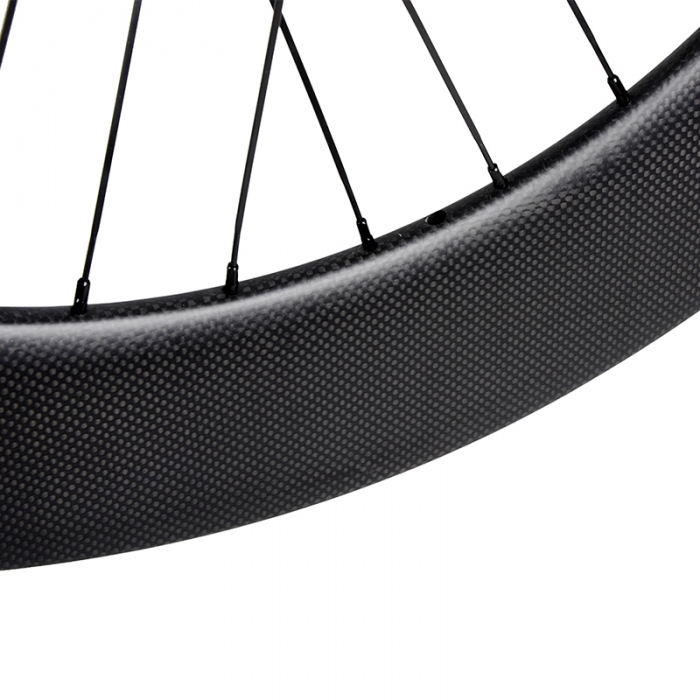

Utilization of Japanese Toray carbon fiber outer layer. 88mm carbon rim use the hollow structure with air bubble and make it more strong and siffness. F718gr / R866gr, which is super competitive for wide tubular wheel with strong capacity of acceleration. Free Alloy Skewer, Brake Pads, Spare spokes, Valve extender will send you as gifts. When the riders braking,braking surface could endure 240 degrees. We have a good pre-sale and after-sale surpport. Decal and painting is available.
Subject : Good durability carbon wheel repair
Model |
XB-88T |
Use |
Road bike |
Material |
Full carbon |
Size |
700c/28” |
Version |
Tubular |
Finish |
UD,3K,12K matte/glossy |
Surface |
Basalt braking surface |
Depth |
88mm |
Width |
23mm |
ERD |
468mm |
Rim Weight |
550±12g |
Wheelset Weight |
1585±20g |

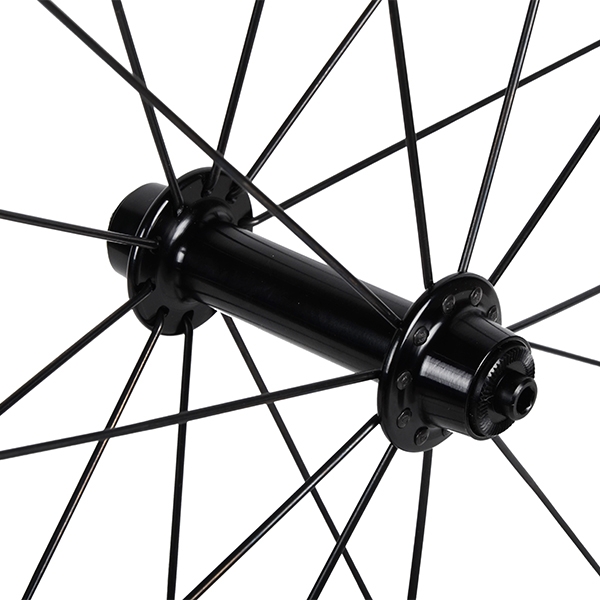

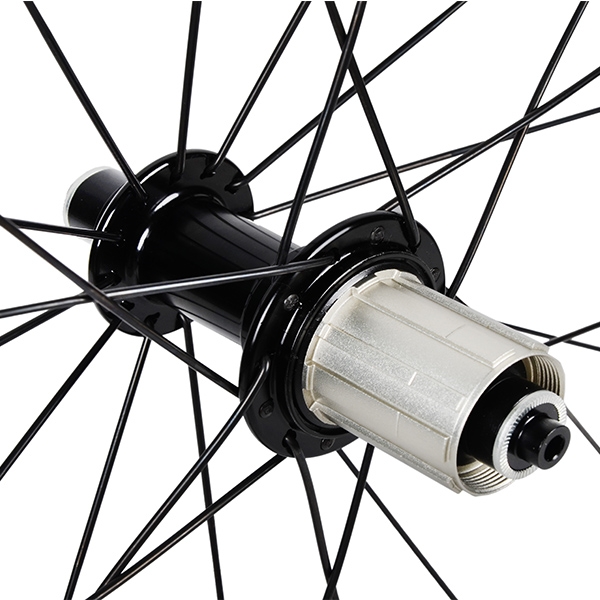

Hub |
285g Powerway R13 |
Spoke |
4.3g Pillar Aero 1420 20/24H |
Nipples |
Pillar alloy |
Units |
PC |
Warranty |
12 months |
Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.
Road Hubs: | Spoke: |
177g ExtraLite | 4.3g Sapim CX-Ray |
314g DT SWISS 240S | 4.3g Pillar Aero 1420 |
248g Hubsmith BF-R001F/R001R | 6.7g Pillar Aero 1423 |
257g Bitex RAF10 / RAR9 | 6.7g Pillar Aero 1432 |
297g Powerway R36 | 6.7g Japan Blade spokes |
285g Powerway R13 | |
317g Novatec 291SB & 482SB | |
384g Novatec 271SB & 372SB | |
Track hubs: | |
452g Powerway T01 | |
452g Novatec T01 | |
Road disc brake hubs: | |
408g Novatec D711SB & 722SB | |
355g HS-R034F&HS-R035R straight pull hub | |
MTB disc brake hubs: | |
414g Novatec D771SB & 772SB | |
491g Novatec D881/D882 | |
NO 20 xinkang road, xinyang industrial, Haicang district, Xiamen,Fujian, China
X-Bike equipment Co.,Ltd,a brand of carbon wheel manufacture, China.
