X-BIKE products are race tested and put through the strictest quality control processes. All items have passed SGS, EN test.

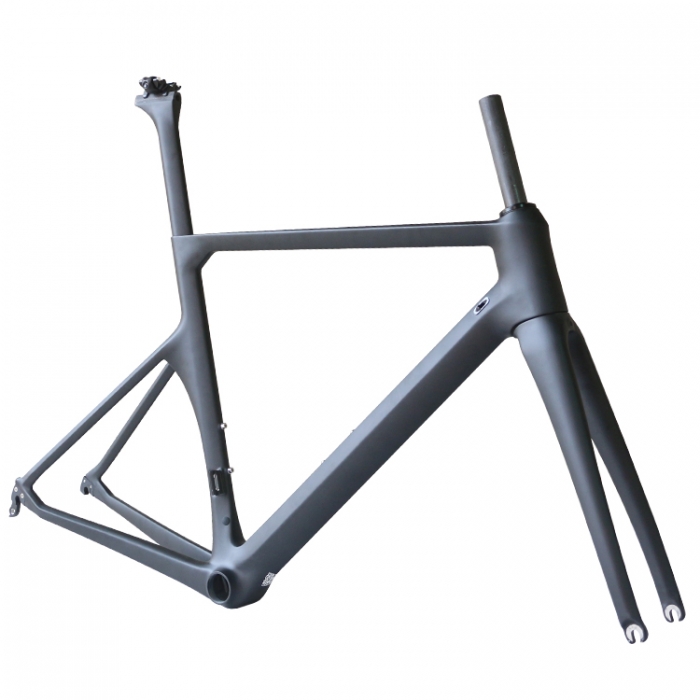

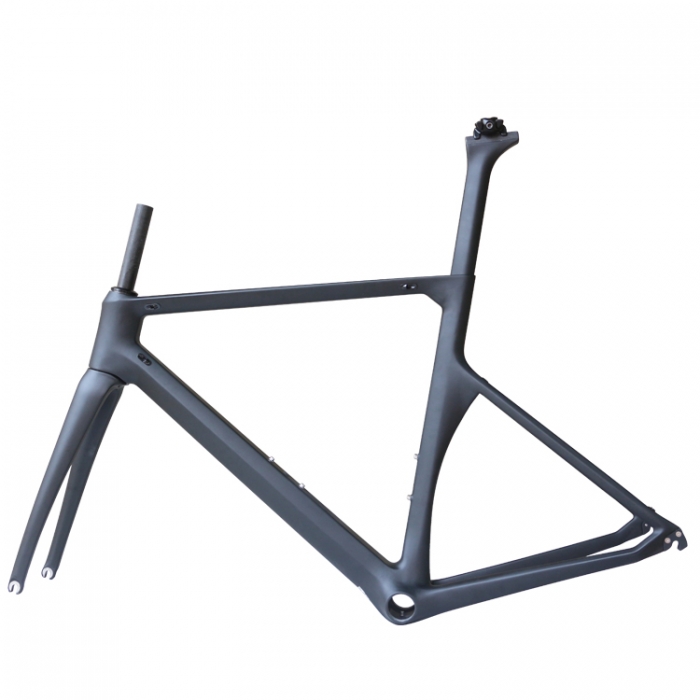

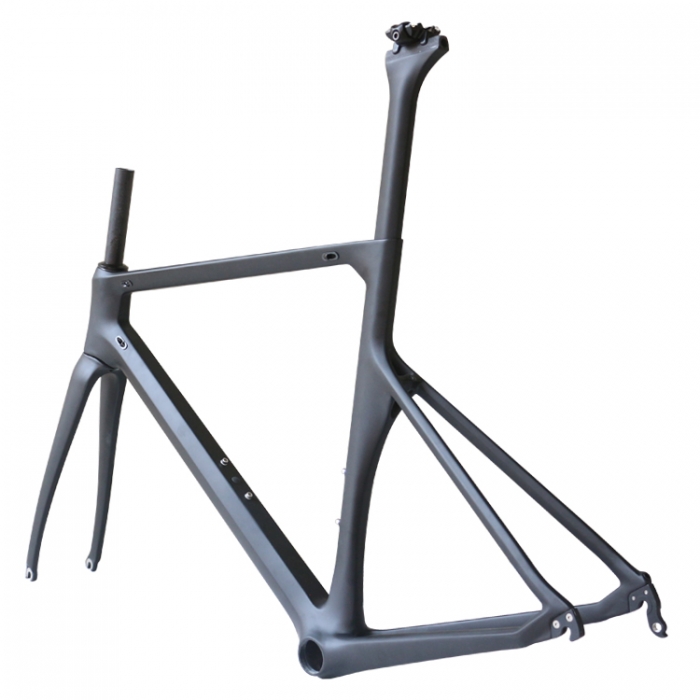

Frame is the heart for carbon bicycle. Stiffer and faster, it is designed for racing amd handcrafted in OEM factory. Order a frame only-or let us build it up depending on your specs as Unparalleled bike in the world!
Item: |
XB-X1 |

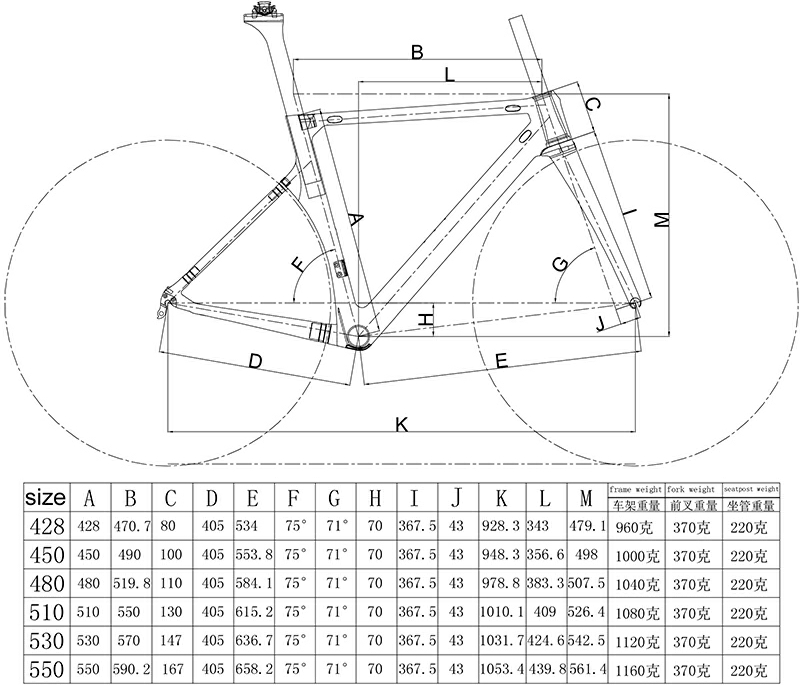

Frame: |
42.8cm,45cm,48cm,51cm,53cm,55cm |

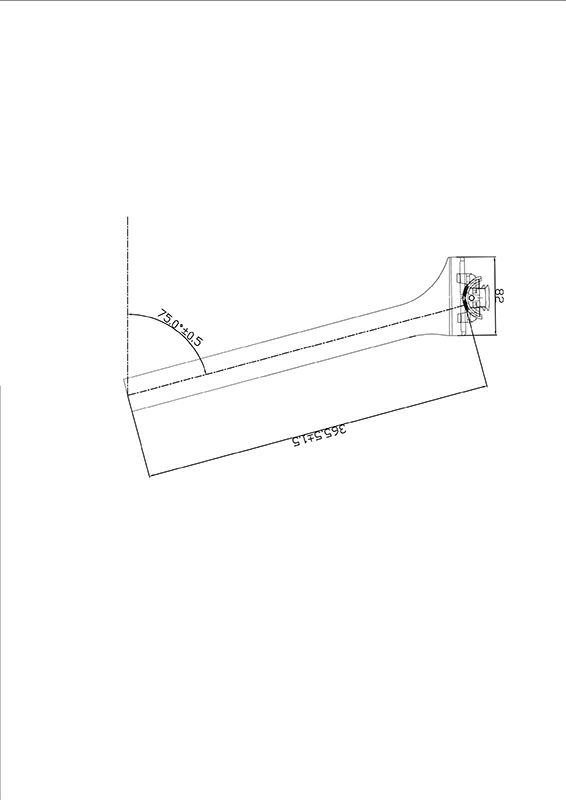

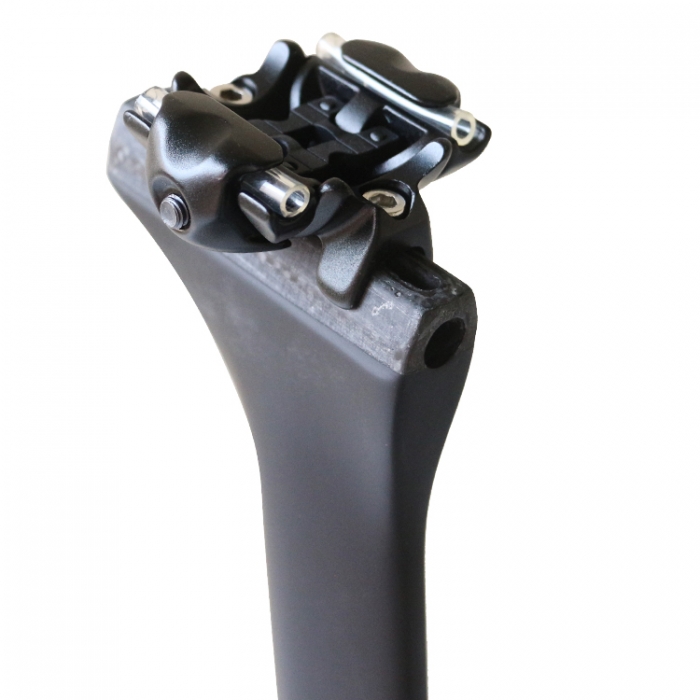

Seat Post: |
Special Seat post 400mm length |
Integrated Handlebar: |
Stem 9/10/11/12cm;handlebar 40/42/44cm inner cable |
Stem Spacer: |
10mm |
Weave: |
UD |
Finished: |
To order |
Material: |
High Modulus Toray Carbon Fiber |
Brake Type |
Normal double bolt Straight |
Weight: |
Frame 1120g(51cm),Fork 380g |
quick release : |
Front 9 x 100mm QR, Rear 9x 130mm QR |
Head tube: |
1-1/8'' to 1-1/2” |
Wheels size: |
700X25C |
Warranty: |
2 |

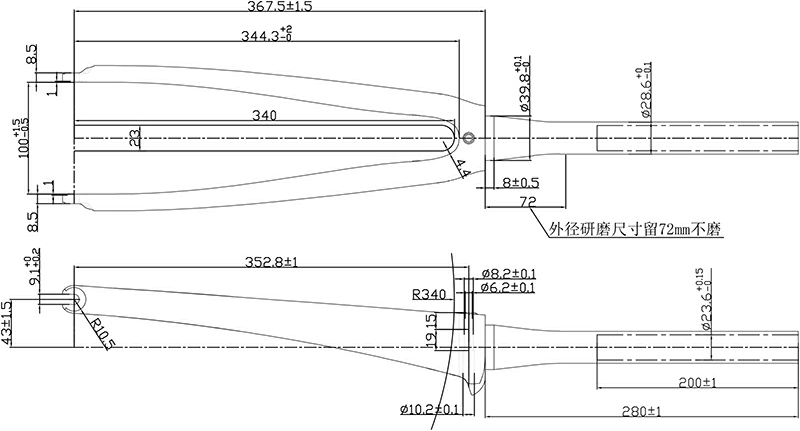

Fork Offset: |
45˚ |

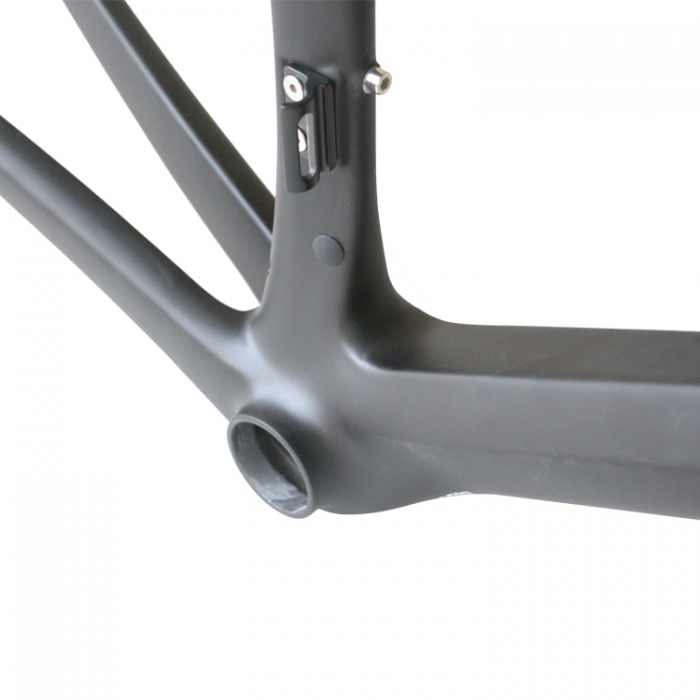

Bottom Bracket: |
BB86 |

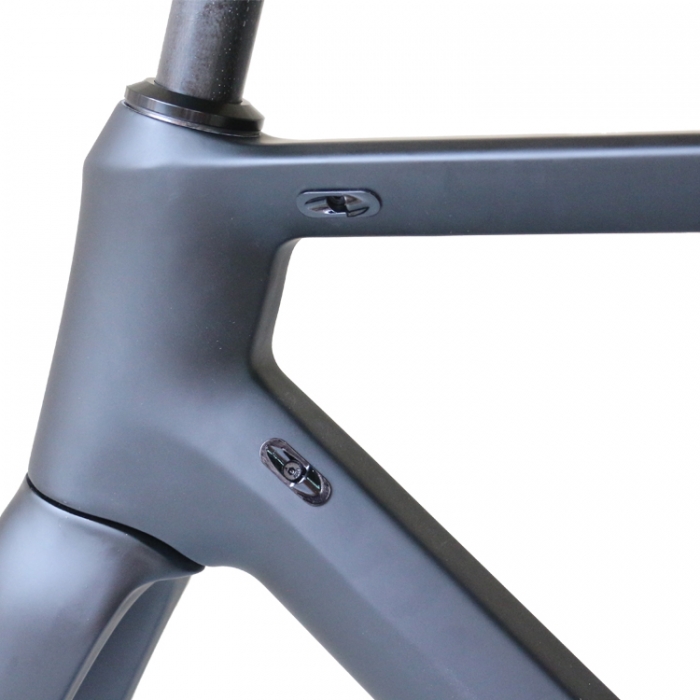

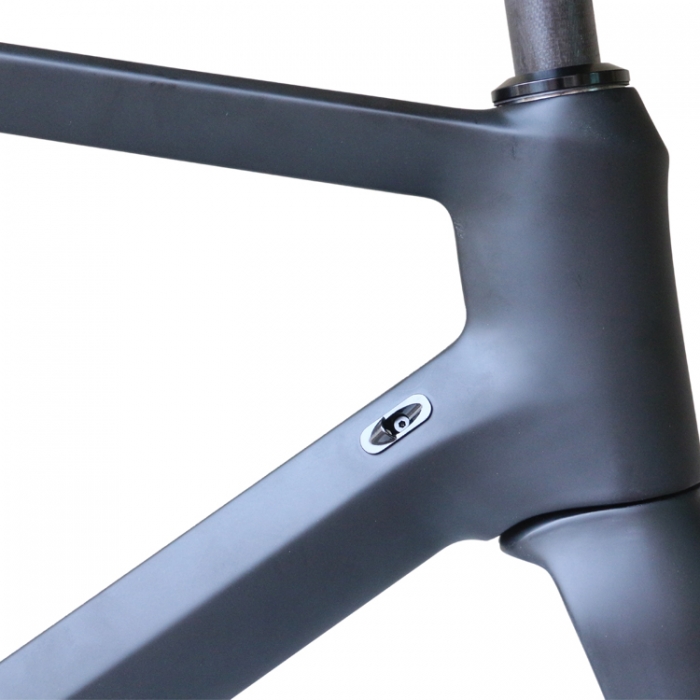

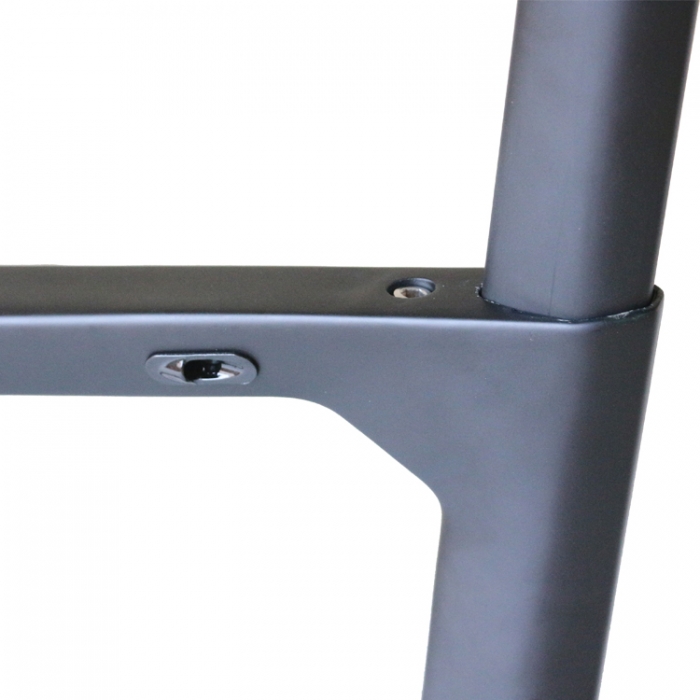

Cable Plug: |
Internal cable |
Group set: |
Machine and Di2 compatible |
Tested: |
SGS |
Laden Weight: |
110KG |
Customized frames per your specs depending on your base. Mould design is our greatest superiority.
TT frame, Track frame, Road frame, MTB frame, Fatbike frame and other bicycle parts (fork, handlebar, stem, saddle, seat post, bottle cage...) to your options.
Water-transfer decal, sticker and painting service for OEM your brands. You could tell us your unique design of decal, for example letters, outline, color, size and so on. Then our designer will make the impression drawing for you.
