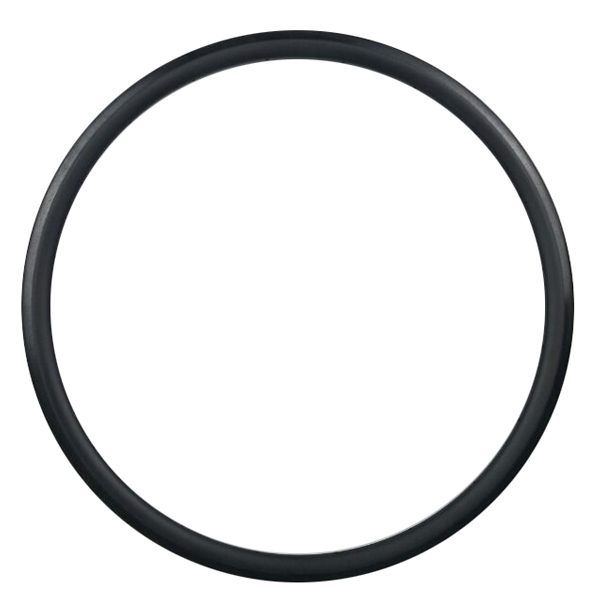

HP30-260T is 2016 HP series Superlight light bicycle carbon rims. 260g+/-10g The rim could assemble the lightest wheelset in the world. U-shape 23mm width. Low 30mm profile. Tubular version that is more suitable for installation without wire beads. Solid with PMI foam that make better acceleration.
overview
specs
customized
technology

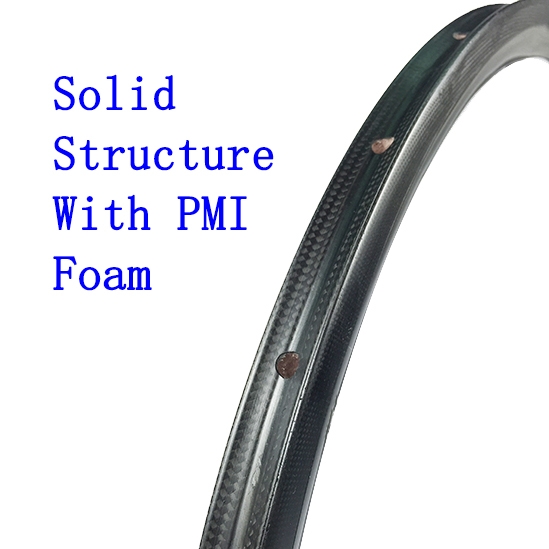

UltraLight: Solid structure with
PMI ROHACELL foam (www.rohacell.com) from Germany. PMI-based structural
foam has been used in fiber-composite technology for more than 30
years. ROHACELL® still dominates in the area of high-grade lightweight
sandwich construction.

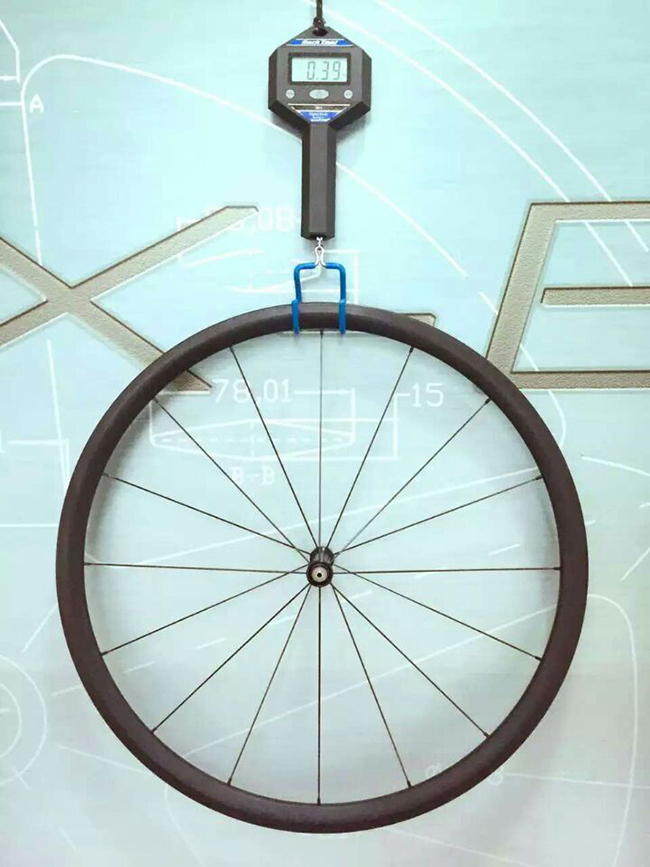

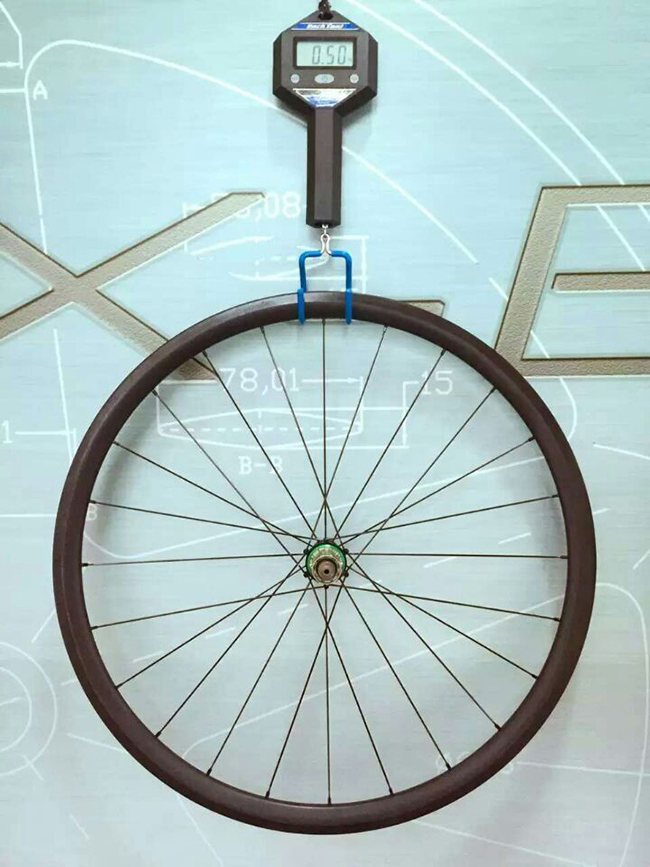

The total is 890g for 1 pair wheelset with 177g ExtraLite hub and
4.3g Sapim CX-Ray spokes.
The weight is incredible!!!
F390g
R500g
Model |
HP30-260T |
Structure |
Solid with PMI foam |
Material |
Full carbon & high TG |
Size |
700c/28” |
Version |
Tubular |
Finish |
UD matte/glossy |
Surface |
Basalt braking surface |

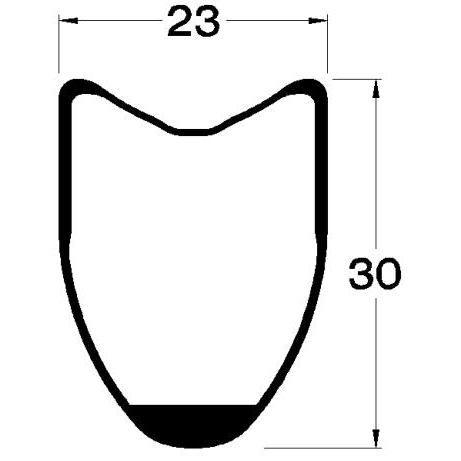

Depth |
30mm |
Width |
23mm |
ERD |
580mm |

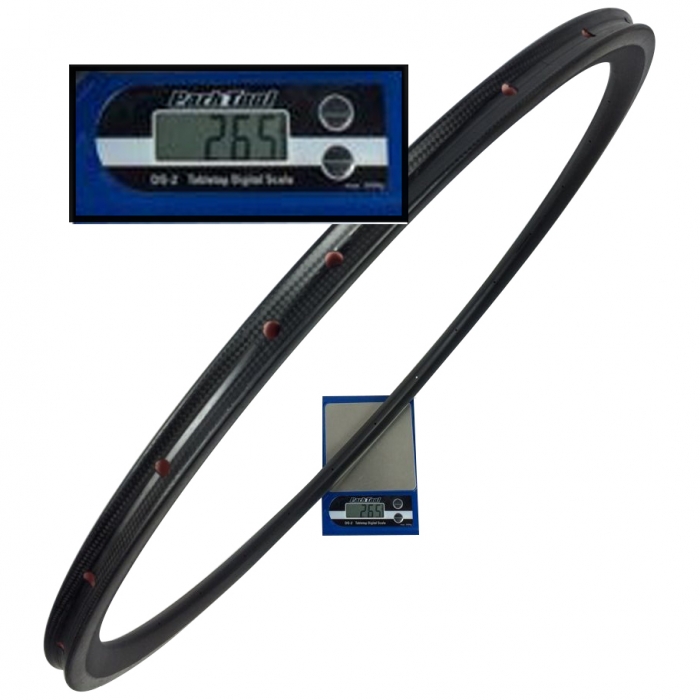

Rim Weight |
260g±10g |
Spoke Hole |
16~32H |
Nipples |
IN & EX |
Units |
PC |
Warranty |
24 months |
Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.
Road Hubs: | Spokes: |
177g ExtraLite | 4.3g Sapim CX-Ray |
314g DT SWISS 240S | 4.3g Pillar Aero 1420 |
248g Hubsmith BF-R001F/R001R | 6.7g Pillar Aero 1423 |
257g Bitex RAF10 / RAR9 | 6.7g Pillar Aero 1432 |
297g Powerway R36 | 6.7g Japan Blade spokes |
280g Powerway R13 | |
285g Novatec 291SB & 482SB | |
Road disc brake hubs: | |
408g Novatec D711SB & 722SB | |
355g hubsmith HS-R034F&HS-R-034R straight pull hub |
Carbon fiber vacuum assisted laminating technology
We produce our HP series carbon rims using strict aerospace manufacturing processes and technologies. If there are excessive voids in the inner carbon fiber products, the fatigue resistance will be reduced.
This is also a very important requirement in the aerospace industry. In order to make a perfectbond between the carbon fiber layers, we perform 3 separate vacuumcure steps in the production of each rim. This makes a multi-layer fiber rim that is compact and free of voids.
