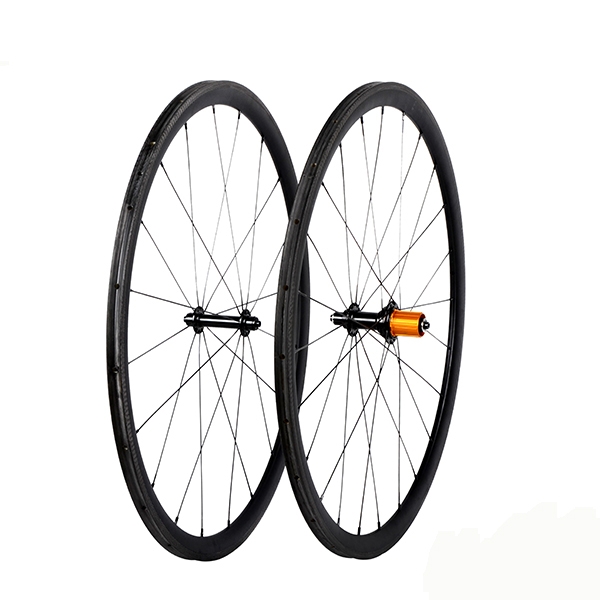

23mm width lightweight carbon wheels. Tubular 30mm wheels with Bitex hub and Pillar aero 1420 spokes. 20/24 holes. Basalt braking surface. Solid with PMI foam. Total weight is about 990g.
overview
specs
customized
technology
HP series rims&wheels is a great
innovation. 23mm width version make it stronger. Extension of previous
technology-Solid structure with PMI foam,its weight is incredible.
PMI foam used ROHACELL from Germany.The
same supplier with big brand, Mavic, Corima.

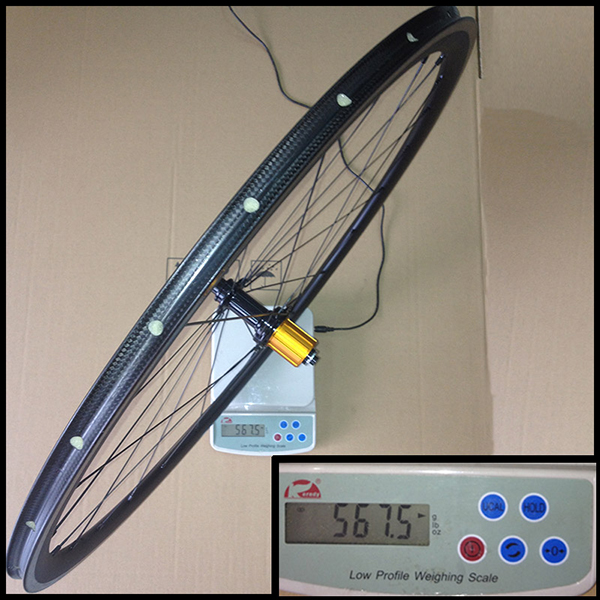

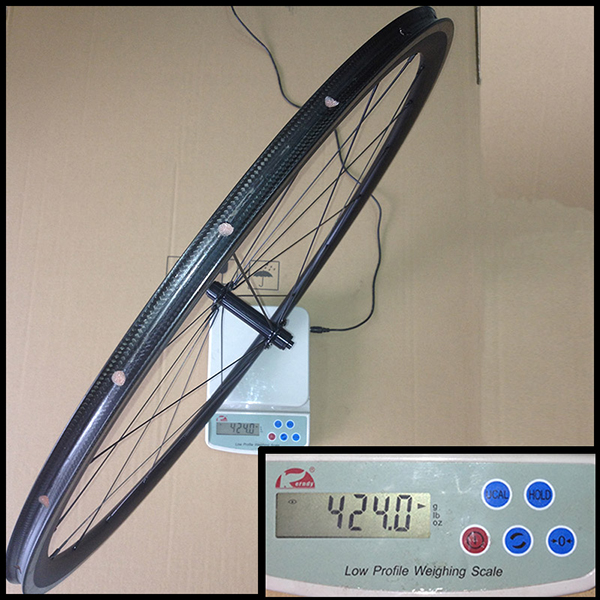

Front wheel 424g, rear wheel 567.5g. The total for tubular 32mm
wheel is 991.5g.
Subject : 32mm Super lightweight carbon wheels
Model |
HP30-260T |
Use |
Road bike |
Material |
Full carbon & High TG |
Size |
700c/28” |
Version |
Tubular |
Finish |
UD matte/glossy |
Surface |
Basalt braking surface |
Depth |
30mm |
Width |
23mm |
ERD |
580mm |
Rim Weight |
260g±10g |
Wheelset Weight |
990±20g |
Hub |
257g Bitex RAF10 / RAR9 20/24H |
Spoke |
4.3g Pillar Aero 1420 |
Nipples |
Pillar alloy |
Units |
PC |
Warranty |
24 months |
Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.
Road Hubs: | Spokes: |
177g ExtraLite | 4.3g Sapim CX-Ray |
314g DT SWISS 240S | 4.3g Pillar Aero 1420 |
248g Hubsmith BF-R001F/R001R | 6.7g Pillar Aero 1423 |
257g Bitex RAF10 / RAR9 | 6.7g Pillar Aero 1432 |
297g Powerway R36 | 6.7g Japan Blade spokes |
280g Powerway R13 | |
285g Novatec 291SB & 482SB | |
Road disc brake hubs: | |
408g Novatec D711SB & 722SB | |
355g hubsmith HS-R034F&HS-R-034R straight pull hub |
When
we were in the cycling road race,highlighting the tactical of a great groups is
very important!
This is
related to race ranking.This requires not only that we have a strong
explosive,but also bike's acceleration is very important.
Bike
accleration is inseparable with the wheelset performance,when the same rider
rides different wheelsets,results tend to be different. X-Bike rims and wheels
are designed for climber,not only have the most light weight and inertia their
performance is also the most prominent.They are the weapons making your
opponents far behind of you!
