Home Carbon rims Light Weight Carbon Rims HP46-320T 320g 46mm Carbon Road Rims
carbon road rims

320g 46mm Carbon Road Rims

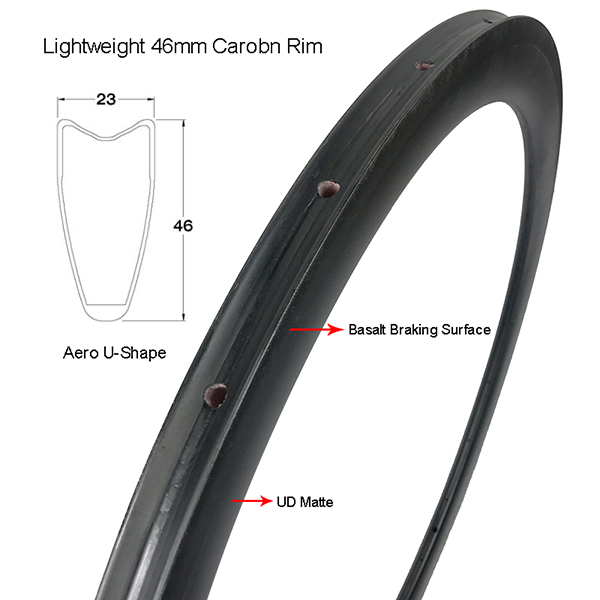

Tubular 46mm superlight carbon road rims is our new model for EUROBIKE 2018. The width is 23mm. Weight is about 320+/-10g. Solid with PMI foam core. 16-32H. Basalt braking surface.

Contact Us
  • overview

  • specs

  • customized

  • technology

We research and develop solid rims for many years. The advantage is on weight and acceleration.

The weight for tubular 46mm rim is about 320g.


Our HP series carbon rims utilize Evonik's high temperature resistant and high strength structural ROHACELL PMI foam and uses special carbon fiber laminated structure. Both the carbon rims and sidewalls have become a stable unit. When a rider stands on the pedal, the hard rim sidewallswill effectively apply 100% of the force to the tires, which combined with the lightweight advantage of HP series carbon rims,results in excellent acceleration.


That is why we researched and developed HP series carbon fiber rims—To make the fastest carbon fiber rims!

inquiry now

Subject : 320g 46mm Carbon Road Rims

Model

HP46-320T

Structure

Solid with PMI foam

Material

Full carbon & high TG

Size

700c/28

Version

Tubular

Finish

UD matte/glossy

Surface

Basalt braking surface

Depth

46mm

Width

23mm

ERD

549mm

Rim Weight

320±10g

Spoke Hole

16~32H

Nipples

IN & EX

Units

PC

Warranty

24 months

Customized wheels per your specs depending on your base. All kinds of hubs and spokes to your options. Water-transfer decal, sticker and painting service for OEM your brands.


 Road Hubs:  Spokes:
 177g ExtraLite     4.3g Sapim CX-Ray
 314g DT SWISS 240S  4.3g Pillar Aero 1420
 248g Hubsmith BF-R001F/R001R  6.7g Pillar Aero 1423
 257g Bitex RAF10 / RAR9  6.7g Pillar Aero 1432
 297g Powerway R36  6.7g Japan Blade spokes
 280g Powerway R13
285g Novatec 291SB & 482SB
 Road disc brake hubs:
 408g Novatec D711SB & 722SB
 355g hubsmith HS-R034F&HS-R-034R straight pull hub

When we were in the cycling road race, highlight the tactical of a great groups is very important!

This is related to race ranking. This requires not only that we have a strong explosive, but also bike's acceleration is very important.

Bike accleration is inseparable with the wheelset performance, when the same rider rides different wheelsets, results tend to be different. X-Bike rims and wheels are designed for climber, not only have the most light weight and inertia their performance is also the most prominent. They are the weapons making your opponents far behind of you!

X-Bike equipment Co.,Ltd,a brand of carbon wheel manufacture, China.

X-Bike Equipment Co., Ltd, is a carbon bicycle manufacturer established by 2007.To meet the needs of our consumers for outstanding quality carbon bicycles, superlight carbon rims, wheels. We get out into the market and race, listen, observe and learn, so that we are able to look ahead and understand the trends which will shape our business in the future, and move swiftly to prepare for what’s to come.
